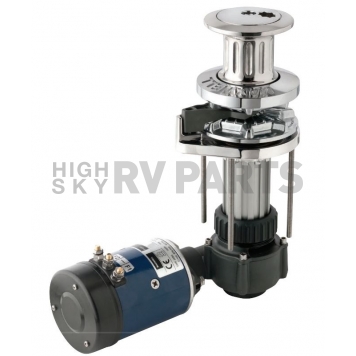

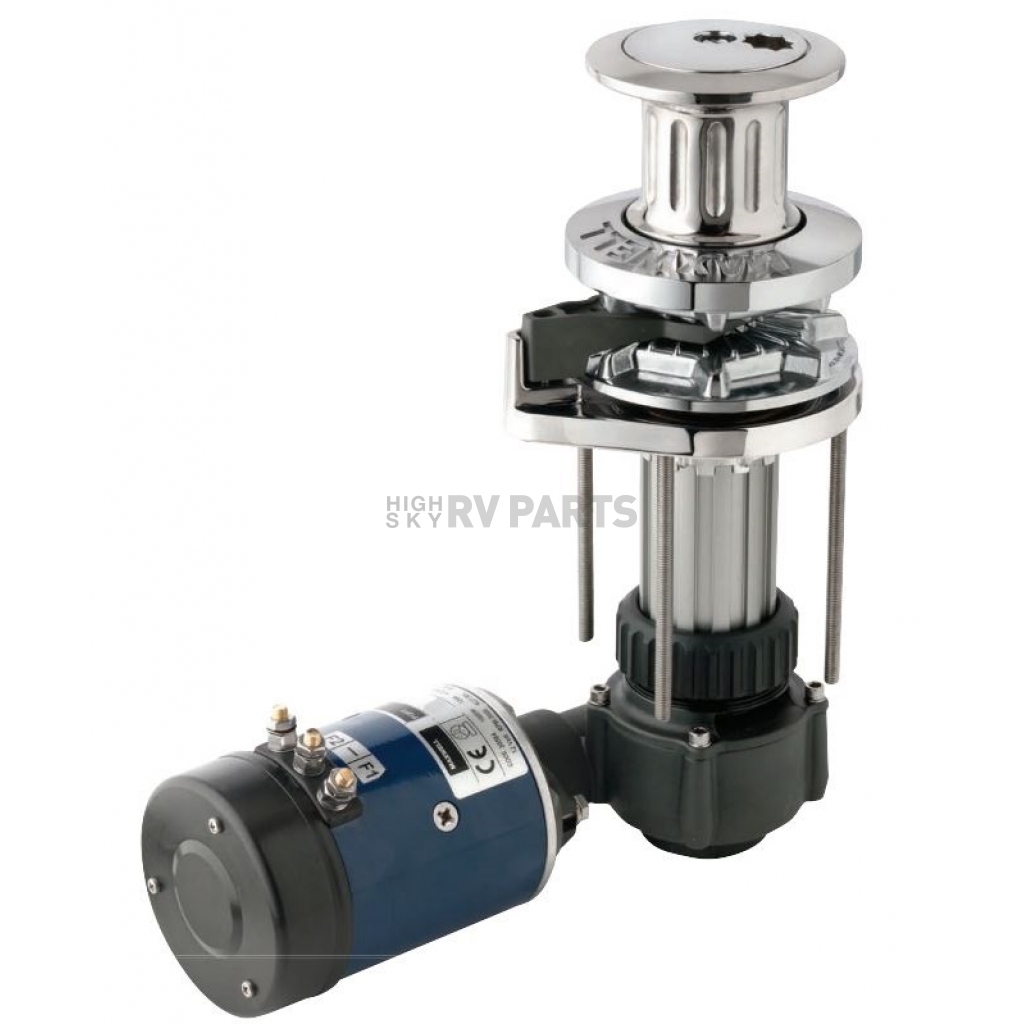

Maxwell Windlass - VW1500 Series Vertical Mount 1870 Pounds Maximum Pull - VW150024V105

Brand: Maxwell
0 reviews
  • Have a product question? Ask us
  • Part Number: VW150024V105
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by March 16
Retail: $2,802.44
Price: $2,668.99
You Save: $133.45
Chain/ Rope Size
 1/4 To 3/8 Inch Chain
Material
 316 Stainless Steel
Maximum Line Speed
 59 Feet Per Minute Line
Maximum Pull
 1870 Pound
Motor Power
 1200 Watt
Mount Type
 Vertical
Voltage Rating
 24 Volt DC
Working Load Limit
 3300 Pound
Share this page

Windlass; VW1500 Series; Vertical Mount; 1870 Pounds Maximum Pull; 3300 Pounds Load Limit; 59 Feet Per Minute Line Speed; 316 Stainless Steel; 24 Volt DC; 1/4 To 3/8 Inch Chain; With Aluminum Gearbox/ Spacertube/ Dual Direction Cima Motor/ Independent Warping Capstan/ Crank Handle

MPN: VW150024V105

The VW 1500 series is designed for automatic handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and/or chain rode, or to assist with docking procedures.

Mount Type: Vertical
Maximum Pull: 1870 Pound
Working Load Limit: 3300 Pound
Maximum Line Speed: 59 Feet Per Minute Line
Chain/ Rope Size: 1/4 To 3/8 Inch Chain
Material: 316 Stainless Steel
Voltage Rating: 24 Volt DC
Motor Power: 1200 Watt

Features

  • Permits Use Of Traditional Shackle And Thimble Rope And Chain Connection
  • Allows Alternative Mounting Horizontally On A Fore And Aft Bulkhead Inside Chain Locker For Below Deck Installation
  • High-Quality Finish On Above Deck Components, Manufactured From Marine Grade Stainless Steel And Chromed Bronze, For Long Term Durability
  • Cone Type Brake And Clutch Mechanism Permits Manual ‘Free Fall’ Anchoring: Cone Clutches, Unlike Dog Clutches, Provide Smooth Progressive Engagement Ensuring Safe Operator Control
  • Simplified Through Deck Installation By Modular Design
  • Anodized Aluminum Gearbox And Spacer
  • Heavy Duty, Dual Direction Cima Motor, Designed For Marine Winches
  • Easily Disassembled For Servicing
  • Limited 3 Year Warranty
Specifications of Maxwell Windlass - VW1500 Series Vertical Mount 1870 Pounds Maximum Pull - VW150024V105
Chain/ Rope Size  1/4 To 3/8 Inch Chain
Material  316 Stainless Steel
Maximum Line Speed  59 Feet Per Minute Line
Maximum Pull  1870 Pound
Motor Power  1200 Watt
Mount Type  Vertical
Voltage Rating  24 Volt DC
Working Load Limit  3300 Pound
