Maxwell Windlass - RC8 Series Vertical Mount - RC8812V

Brand: Maxwell
0 reviews
  • Have a product question? Ask us
  • Part Number: RC8812V
  • Part Location: U.S.
  • Availability: 18 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by March 16
Retail: $2,206.04
Price: $2,100.99
You Save: $105.05
Chain/ Rope Size
 5/16 Inch Chain And 9/16 To 5/8 Inch Rope
Material
 316 Stainless Steel
Maximum Line Speed
 105 Feet Per Minute Chain/ 92 Feet Per Minute Rope
Maximum Pull
 1320 Pound
Motor Power
 1000 Watt
Mount Type
 Vertical
Size
 16-1/4 Inch Width
Voltage Rating
 12 Volt DC
Working Load Limit
 2640 Pound
Share this page

Windlass; RC8 Series; Vertical Mount; 1320 Pounds Maximum Pull; 2640 Pounds Load Limit; 105 Feet Per Minute Chain Speed/ 92 Feet Per Minute Rope Speed; 16-1/4 Inch Width; 316 Stainless Steel; 12 Volt DC; 5/16 Inch Chain And 9/16 To 5/8 Inch Rope Size; With Top Works/ Gearbox/ 1000 Watt Motor/ Dual Direction Solenoid/ Crank Handle/ Allen Key

MPN: RC8812V

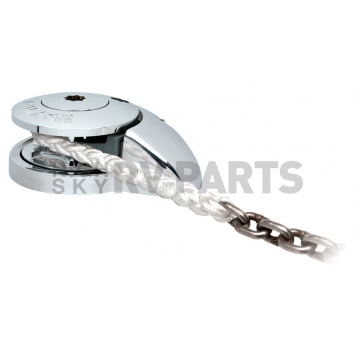

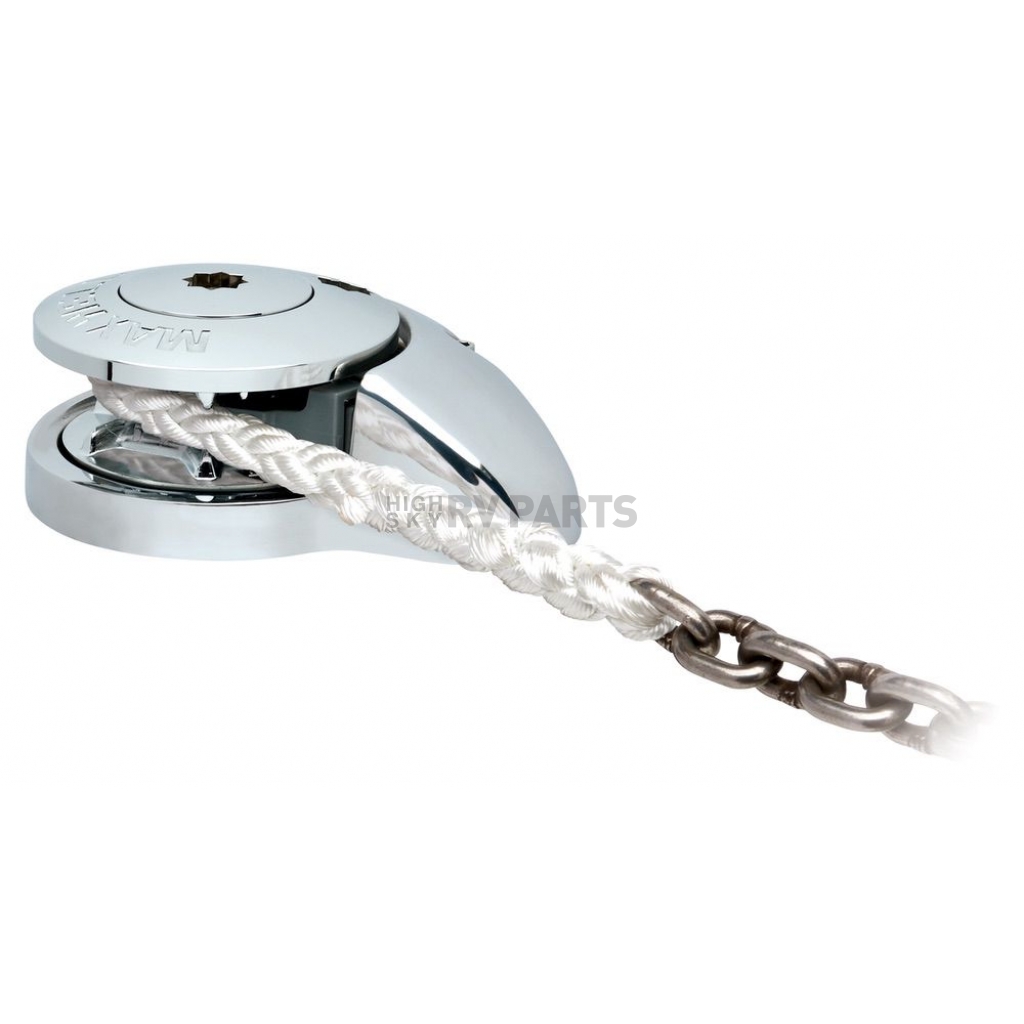

The RC8 rope/chain windlass is the product of over 30 years of engineering refinements and is the third generation of Maxwell windlass in this size with some of the best performance and longevity figures on the market. The tried a true RC8 can be used with 8 Millimeter (5/16 Inch) chain spliced to 14 Millimeter 8-plait nylon rope. The patented Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC8’s specified chain size diameters.

Mount Type: Vertical
Maximum Pull: 1320 Pound
Working Load Limit: 2640 Pound
Maximum Line Speed: 105 Feet Per Minute Chain/ 92 Feet Per Minute Rope
Size: 16-1/4 Inch Width
Chain/ Rope Size: 5/16 Inch Chain And 9/16 To 5/8 Inch Rope
Material: 316 Stainless Steel
Voltage Rating: 12 Volt DC
Motor Power: 1000 Watt

Features

  • Gearbox Can Be Removed By Hand And Without Tools For Easy Maintenance And Inspection
  • Full Disassembly Capability Of The Top Works Utilizing Only The Handle Provided And An Allen Key
  • Manual Override And ‘Free Fall’, Using The Emergency Crank And Clutch Handle Provided
  • Sealed Oil Bath And Marine-Grade Hard Anodized, Alloy Gearbox Provides Maximum Output Via A Precision Worm And Worm Wheel

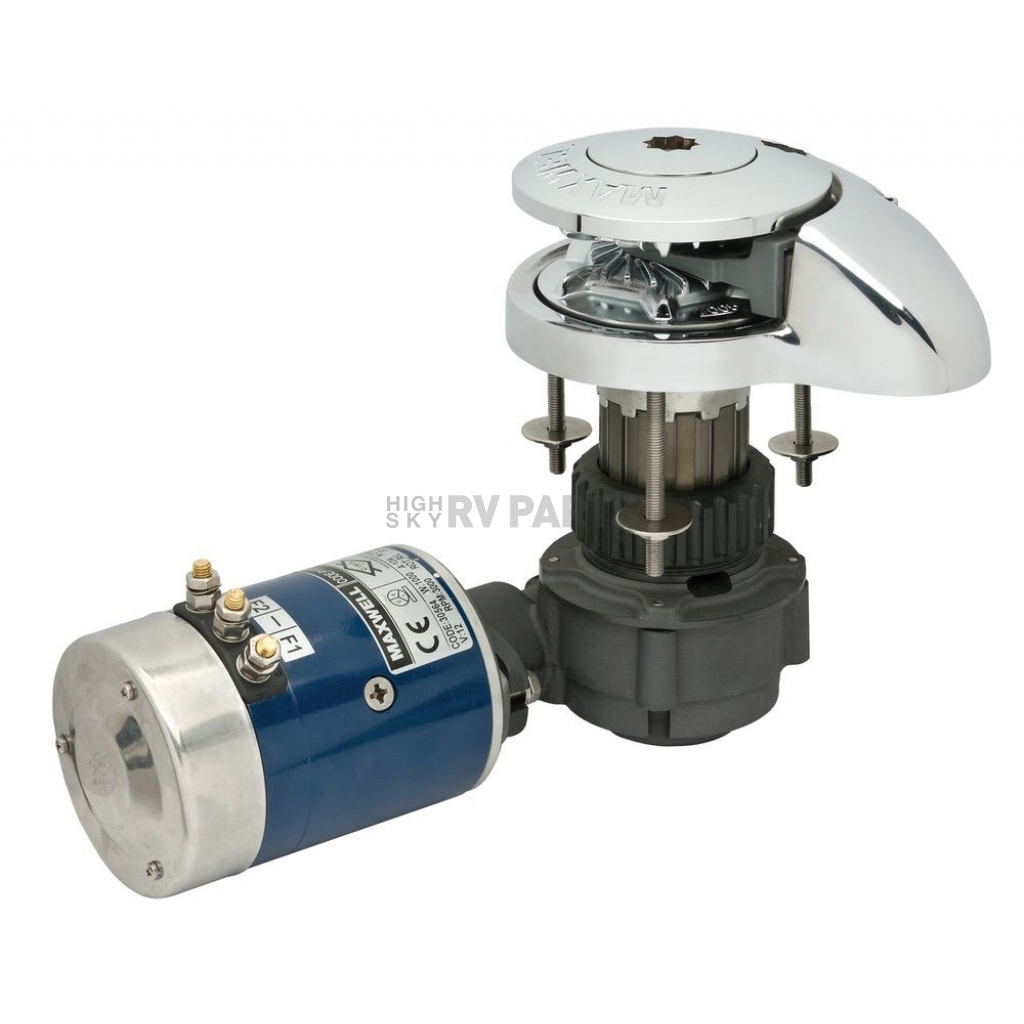

  • Every Maxwell RC8 Automatic Rope/Chain Windlass Comes With Top Works, Motor/Gear Box And Dual Direction Solenoid

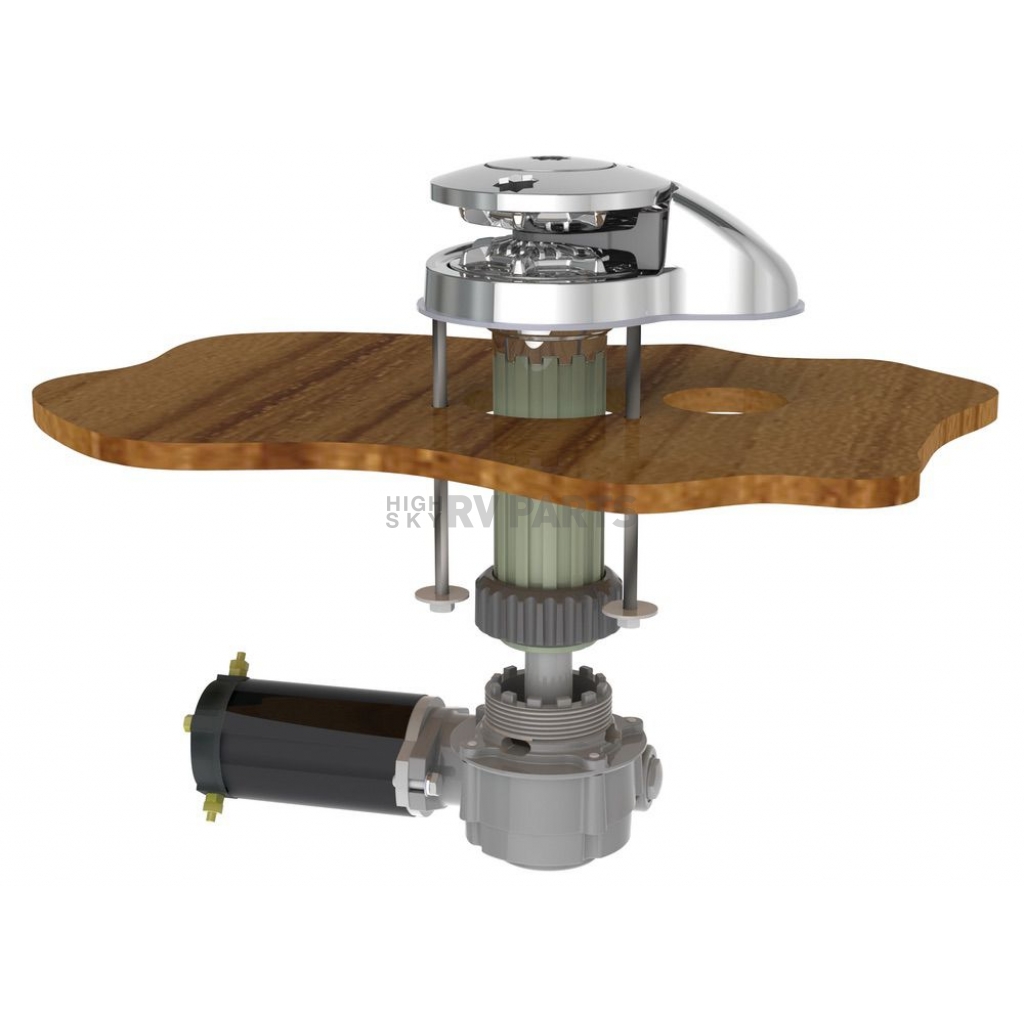

  • Unique Spacer Tube Design Allows For Installation Through Virtually Any Deck Thickness, And The Multiple Mounting Positions
  • Limited 3 Year Warranty
Specifications of Maxwell Windlass - RC8 Series Vertical Mount - RC8812V
Chain/ Rope Size  5/16 Inch Chain And 9/16 To 5/8 Inch Rope
Material  316 Stainless Steel
Maximum Line Speed  105 Feet Per Minute Chain/ 92 Feet Per Minute Rope
Maximum Pull  1320 Pound
Motor Power  1000 Watt
Mount Type  Vertical
Size  16-1/4 Inch Width
Voltage Rating  12 Volt DC
Working Load Limit  2640 Pound
