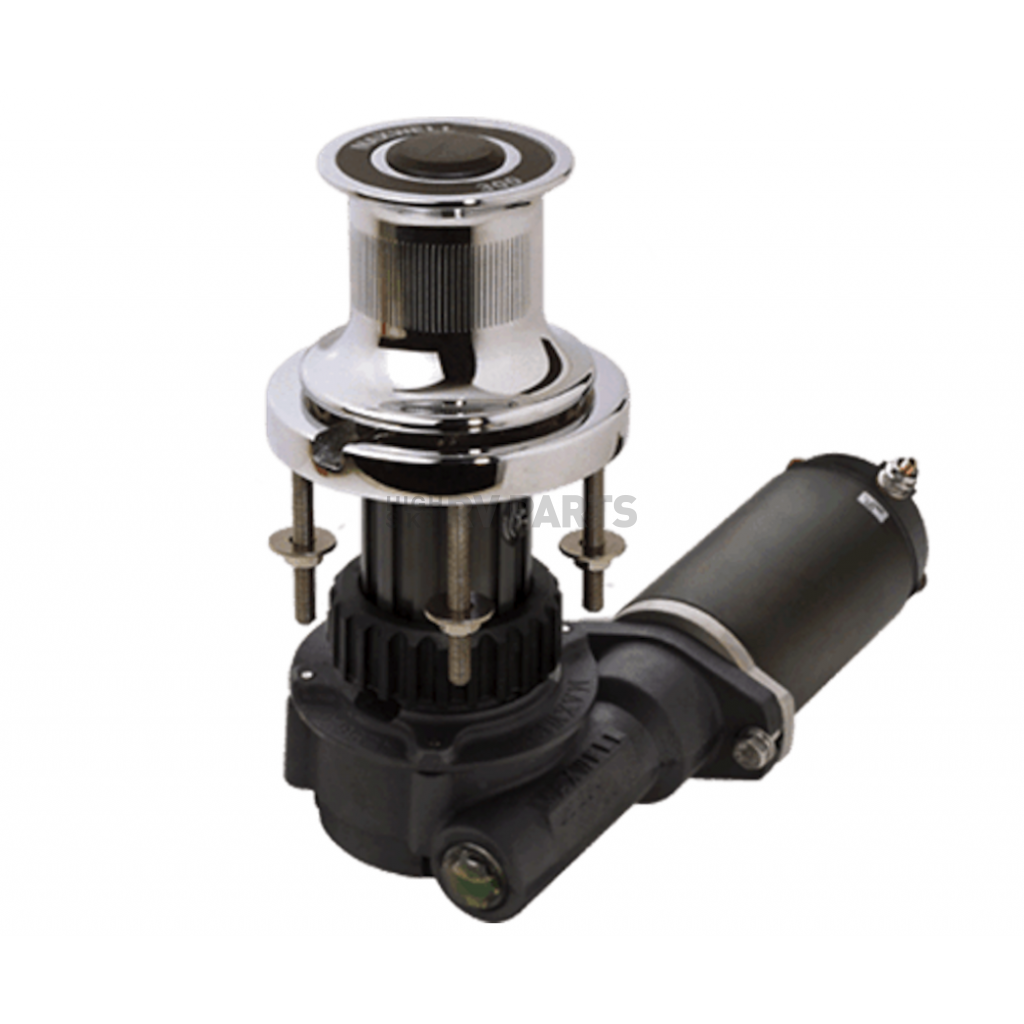

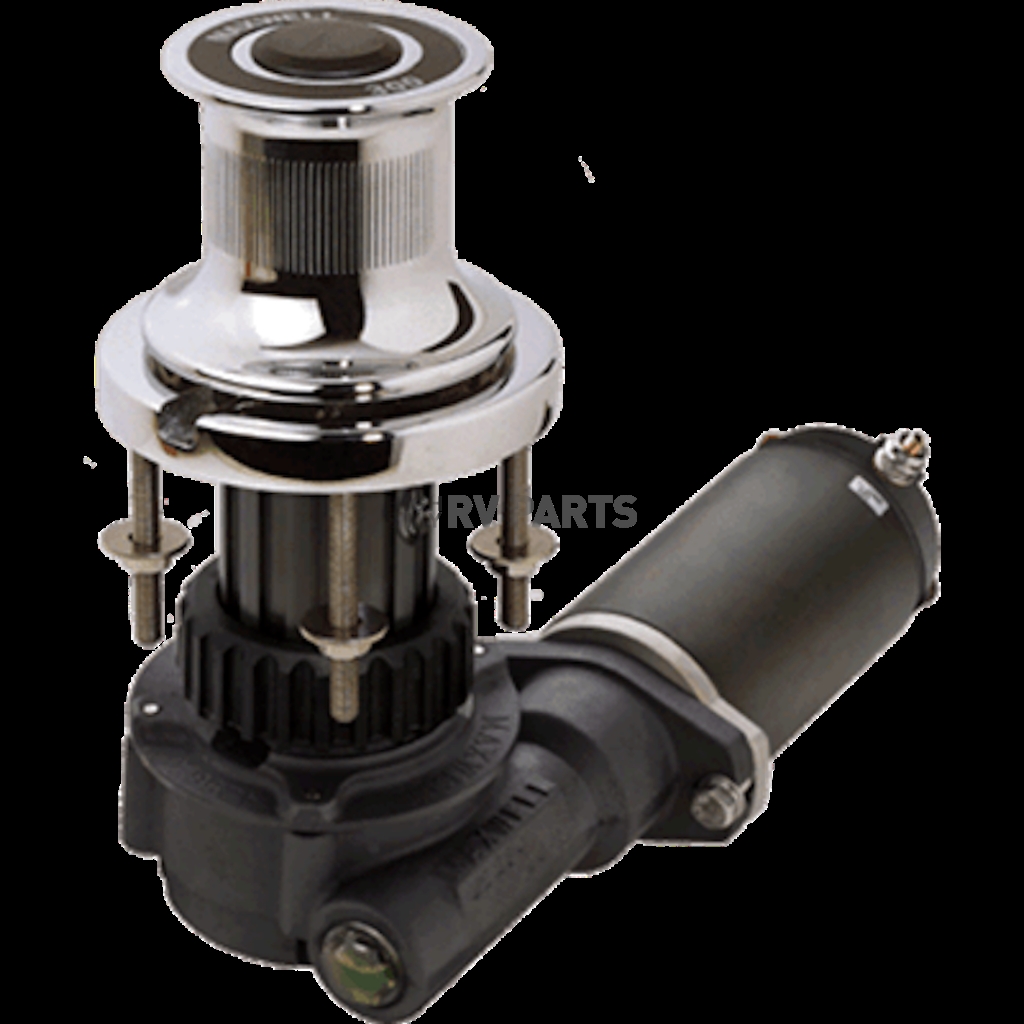

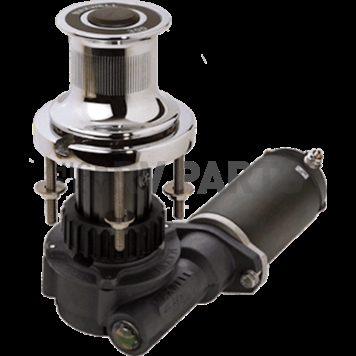

Maxwell VC Series Capstan Vertical Drum W/ Below-Deck Motor Windlass - VC50012V

Brand: Maxwell
  • Have a product question? Ask us
  • Part Number: VC50012V
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by March 16
Retail: $1,326.14
Price: $1,262.99
You Save: $63.15
Below Deck
6.9''
Chain/ Rope Size
 Rope only, variable size
Max deck thickness
2''
Maximum Line Speed
 Rope only, 60'/min.
Maximum Pull
 500 Pound
Motor offset
9.6''
Motor Power
 600 Watt
Mount Type
 Vertical, below deck motor
Voltage Rating
 12 VDC
Wt
22 lbs.
Share this page

Windlass; VC Series Capstan, Vertical Drum W/ Below-Deck Motor, 500 Lb. Max Capacity, For Rope Only, Pulls At 60'/ Min., 12 VDC, 600 Watt Motor. Footswitch Included. For Decks Up To 2" Thick.

MPN: VC50012V

VC Series Vertical CapstanVertical Capstan with Below-Deck MotorThe VC Series is designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.

Mount Type: Vertical, below deck motor
Maximum Pull: 500 Pound
Maximum Line Speed: Rope only, 60'/min.
Size: Above Deck: 4.2''; Below Deck: 6.9''; Motor offset: 9.6''; Wt: 22 lbs.; Max deck thickness: 2''
Chain/ Rope Size: Rope only, variable size
Voltage Rating: 12 VDC
Motor Power: 600 Watt

Features

  • Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling.
  • High quality finish on above deck components, hard wearing chrome over marine-grade bronze
  • Functional rope hauling from any direction using independent MAX-grip snag-free warping drum.
  • Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
  • Alternative gearbox/motor positions accommodate virtually all installation situations.
  • Compact, reliable gearbox, made of corrosion resistant materials.
  • Anodised aluminium gearbox and spacer on 300, 500 and 1000 models.
  • Heavy duty, dual direction motors, designed for marine winches.
  • Easily disassembled for servicing.
  • Limited 3 Year Warranty
Specifications of Maxwell VC Series Capstan Vertical Drum W/ Below-Deck Motor Windlass - VC50012V
Below Deck 6.9''
Chain/ Rope Size  Rope only, variable size
Max deck thickness 2''
Maximum Line Speed  Rope only, 60'/min.
Maximum Pull  500 Pound
Motor offset 9.6''
Motor Power  600 Watt
Mount Type  Vertical, below deck motor
Voltage Rating  12 VDC
Wt 22 lbs.
