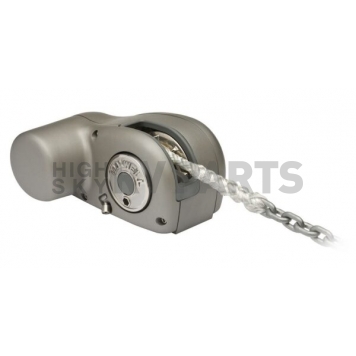

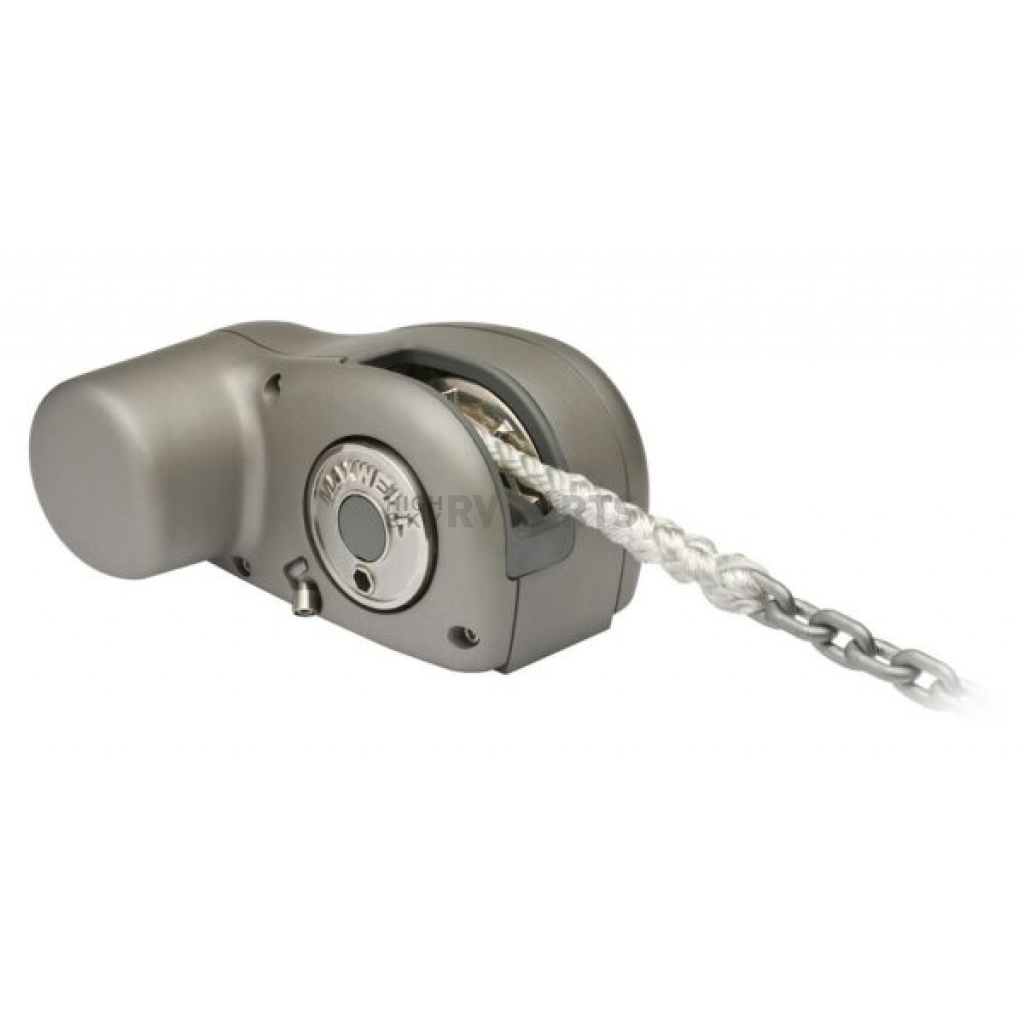

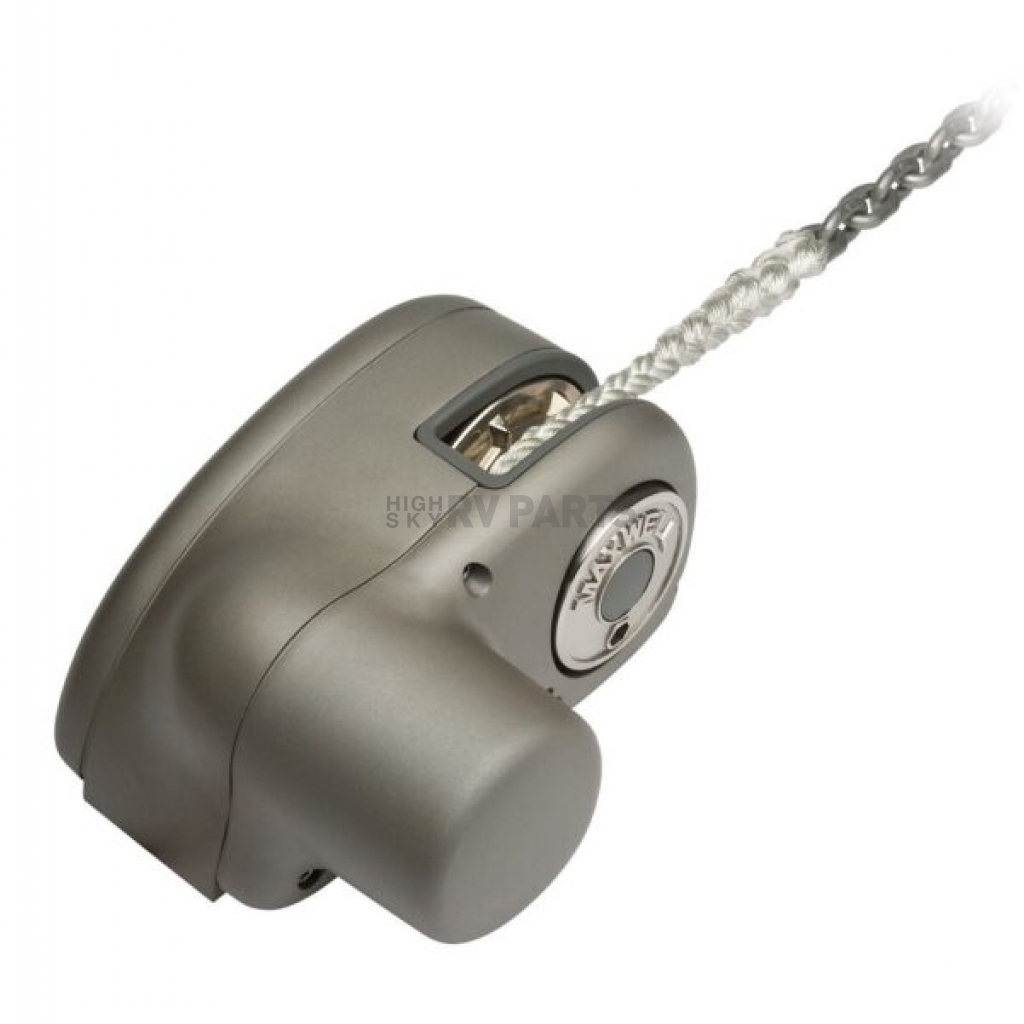

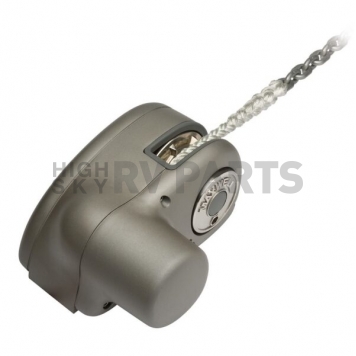

Maxwell Windlass - HRCFF Series Horizontal Mount - HRCFF812V

Windlass; HRCFF Series; Horizontal Mount; 900 Pounds Maximum Pull; 1540 Pounds Load Limit; 108 Foot Per Minute; 10-1/8 Inch Width x 8-3/8 Inch Depth; Die Cast Marine Grade Alloy Case; 12 Volt DC; 5/16 Inch Chain And 9/16 Inch Rope Size; With Top Works/ 600 Watt Motor/ Dual Direction Solenoid

MPN: HRCFF812V

The free fall function is controlled by briefly deploying the anchor from the helm via a switch and letting gravity take over, when you’re ready to stop the fall of the anchor you simply engage the upward switch on the controls which will tighten the clutches and stop the fall of the anchor. The windlass can also be used without free-fall by simply switching a control lever on the front of the HRCFF windlass to non-free-fall mode. This can be left on permanently if desired (i.e. if you prefer not to use the free-fall function) or can be switched back if you’d like to begin using the windlass in free-fall mode once again. Automatic free fall means that the free fall function is controlled from the helm (via a toggle switch or remote), so no physical contact with the windlass is needed to engage free fall. Highly favored by fishermen (who often need to anchor more rapidly so as not to drift from their fishing ground) the HRCFF was designed in conjunction with a number of trailer-boat builders, and was sea tested in some of the harshest marine climates on earth. The HRCFF is a durable, highly functional, and compact unit that has been in service since 2011.

Features

• Now Incorporating Maxwell’s Automatic Free-Fall Technology: Simply Activate The Windlass ‘Free Fall’ Lever, Operate Your Down Control
• Aesthetically Pleasing Above Deck Design, Encapsulating The Motor And Drive In A Watertight Case, Saving Space Below Deck And Allowing Simple Routine Maintenance
• Die Cast, Marine-Grade, Alloy Case Is Hard Anodized For Unsurpassed Marine Protection
• Simple ‘bolt Down’ Installation Ensures Effortless And Rapid On-Deck Installation And Set Up

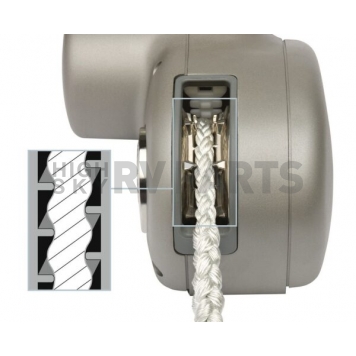

• Trouble Free Rode Transition From Rope To Chain, By Means Of An Innovative, Proven And Patented Pressure Arm System, Within A Safe Enclosed Design
• Integrated Composite Nylon, Through Deck Hawse Pipe For Ease Of Installation And Smooth, Snag-Free Operation
• High Efficiency Spur Gearbox Incorporating A Robust Non-Backwind Mechanism
• High Speed, Jam-Free Retrieval Of Rope And Chain Controlled From A Remote Panel Mounted Up/Down Switch
• Emergency ‘free Fall’ Function In The Event Of Onboard Power Failure: Activated By The Supplied, Emergency ‘Free Fall’ Lever
• Limited 3 Year Warranty
