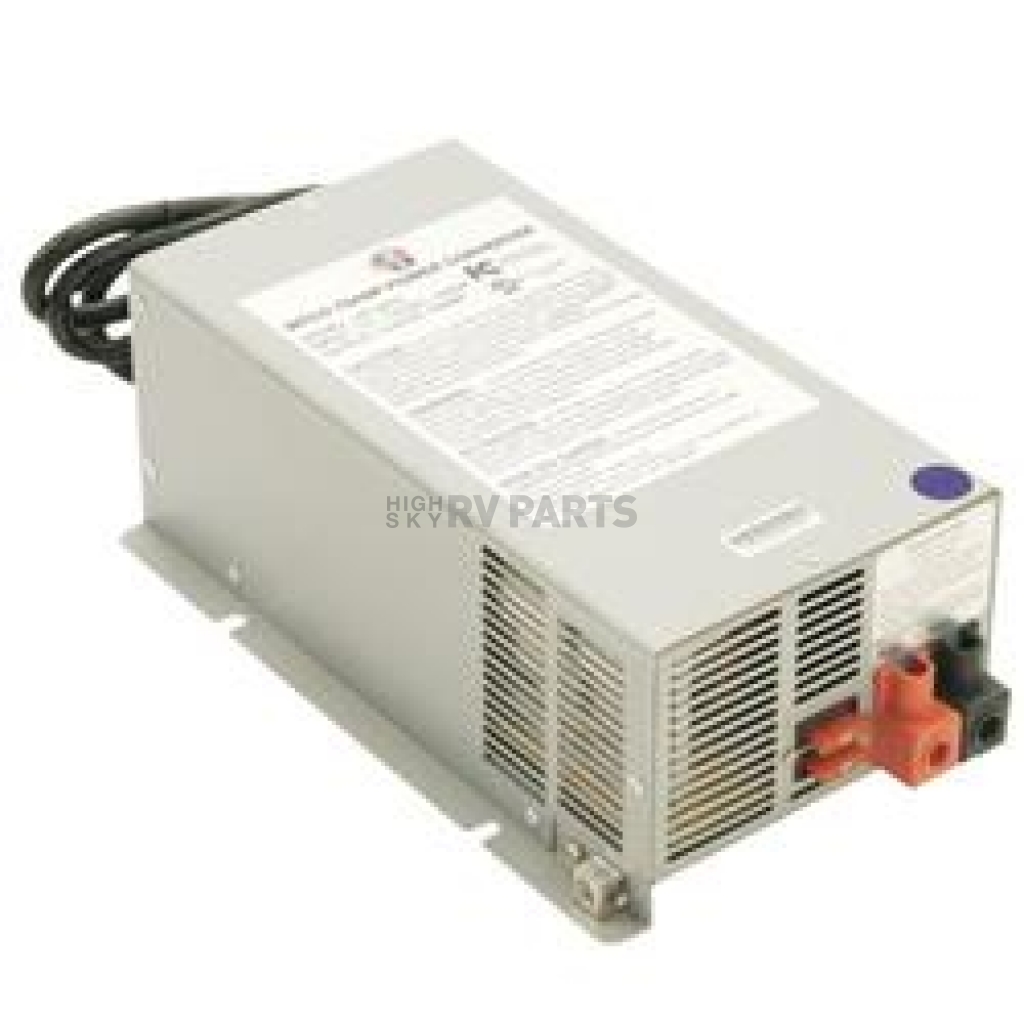

WFCO/ Arterra WF-8855E Power Converter 55 Amp Smart Battery Charger
Ampere Rating
55 Amp
Converts
105-130 Volt AC To 13.2-14.4 Volt DC
Efficiency
80 Percent
Height
4 Inch
Length
10.2 Inch
Peak Output Power
1620 Watt
Width
6.3 Inch
With Battery Cables
No
With Built-In Charger
No
With Fuse
No
With Reverse Battery Protection
Yes
Share this page
Power Converter; 8800 Series; For 220 Volt International Use; Converts 190 To 240 Volt AC To 13.2 To 14.4 Volt DC; 750 Watt Continuous Output/ 1620 Watt Peak Output; 55 Amp Rating; 80 Percent Efficiency; Protection From Short Circuit/ Reverse Polarity/ Over Current/ Over Temperature/ Over Voltage; 6.3 Inch Width x 4 Inch Height x 10.2 Inch Depth; With Battery Charger/ Status Indicator Light/ Cooling Fan/ 8.5 Amp Transfer Switch
MPN: WF-8855E
The converter or charger is a versatile, advanced power source solution for 220 Volt AC powered systems. The model provides 55 Amperes of clean, reliable DC power, which is ideal for powering electronics and appliances. It provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2 Volt DC range “float” mode, 13.6 Volt DC range “absorption” mode, and a 14.4 Volt DC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.Converts: 190-240 Volt AC To 13.2-14.4 Volt DC
Continuous Output Power: 750 Watt
Peak Output Power: 1620 Watt
Ampere Rating: 55 Amp
Efficiency: 80 Percent
Length: 10-1/4 Inch
Width: 6-1/4 Inch
Height: 4 Inch
Remote On/Off Capable: No
With USB Port: No
With Volt/Watt Meter: No
With Short Circuit: Yes
With Reverse Battery Protection: Yes
With Thermal Protection: No
With Battery Cables: No
With Built-In Charger: No
With Fuse: No
Features
- Provides 55 Ampere Of Clean, Reliable DC Power, Which Is Ideal For Powering Electronics And Appliances
- Quiet Operation Is Assured As The Cooling Fan Runs Only When Needed
- Automatic Three-Stage Battery Charging Maintains Your Battery’s Life
- Electronic Current Limiting Automatically Shuts Down The Power During Overload Or Short-Circuit Conditions
- Limited 2 Year Warranty
| Specifications of WFCO/ Arterra WF-8855E Power Converter 55 Amp Smart Battery Charger | |
| Ampere Rating | 55 Amp |
| Converts | 105-130 Volt AC To 13.2-14.4 Volt DC |
| Efficiency | 80 Percent |
| Height | 4 Inch |
| Length | 10.2 Inch |
| Peak Output Power | 1620 Watt |
| Width | 6.3 Inch |
| With Battery Cables | No |
| With Built-In Charger | No |
| With Fuse | No |
| With Reverse Battery Protection | Yes |
| With Short Circuit | Yes |
| With Thermal Protection | No |
| With USB Port | No |
| With Volt/Watt Meter | No |
Download Operating Manual for WFCO/ Arterra WF-8855E Power Converter 55 Amp Smart Battery Charger
Download Service Manual for WFCO/ Arterra WF-8855E Power Converter 55 Amp Smart Battery Charger
