UltraHeat Holding Tank Heaters
Protect the total RV drainage system of holding tanks, pipes and elbows from freezing, even in negative temperatures.
All tank heaters have a built-in sensor to cycle heater for power savings, and maintain tank contents between 44°F and 64°F. Pipe and Elbow heat panels are not sensor controlled. Power on heat panels when the outside temperature is just above freezing, fluids must be present when in use. Power off when the outside temperature remains above freezing, or when tanks are empty. All heaters have an easy to apply peel-n-stick adhesive that adheres to any clean surface. One tank heater will protect up to a 75 gallon holding tank. Use a combination of multiple heaters for tanks greater than 75 gal.
All 13.5 VDC heaters must be wired thru an On/Off switch (not included).Recognized as the North American RV Industry’s Standard since 1991.
Used Worldwide as the Proven Leader for Anti-freeze Protection in Cold Weather RVing and Mobile Holidays.
Engineered and designed to work for decades!
Increased energy efficacy due to our proprietary design.
Made in the USA, supporting the American Worker and Supply Chains.
5 year extended warranty with online product registration
All tank heaters have a built-in sensor to cycle heater for power savings, and maintain tank contents between 44°F and 64°F. Pipe and Elbow heat panels are not sensor controlled. Power on heat panels when the outside temperature is just above freezing, fluids must be present when in use. Power off when the outside temperature remains above freezing, or when tanks are empty. All heaters have an easy to apply peel-n-stick adhesive that adheres to any clean surface. One tank heater will protect up to a 75 gallon holding tank. Use a combination of multiple heaters for tanks greater than 75 gal.
All 13.5 VDC heaters must be wired thru an On/Off switch (not included).
TANK HEATERS

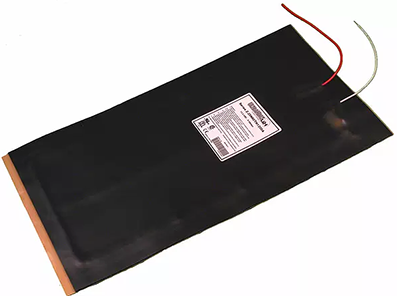

AMM1200 | Tank size 55 Gal. Max. | 13.5VDC | 12" x 20" | AMP Draw 9.9
AMM2400 | Tank size 75 Gal. Max. | 13.5VDC | 12" x 24" | AMP Draw 11.8
AMM4200 | Tank size 55 Gal. Max. | 120VAC | 12" x 20" | AMP Draw 1.4
AMM4800 | Tank size 75 Gal. Max. | 120VAC | 12" x 24" | AMP Draw 1.7

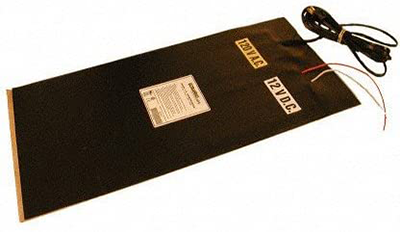

AMM3600 | Tank size 40 Gal. Max. | 13.5 VDC/120 VAC Dual Elements | 12"x24" | AMP Draw 9.0 DC/0.94 AC
AMM2400 | Tank size 75 Gal. Max. | 13.5VDC | 12" x 24" | AMP Draw 11.8
AMM4200 | Tank size 55 Gal. Max. | 120VAC | 12" x 20" | AMP Draw 1.4
AMM4800 | Tank size 75 Gal. Max. | 120VAC | 12" x 24" | AMP Draw 1.7
AMM3600 | Tank size 40 Gal. Max. | 13.5 VDC/120 VAC Dual Elements | 12"x24" | AMP Draw 9.0 DC/0.94 AC
13.5 VDC Only, For Plex style, fresh water feed

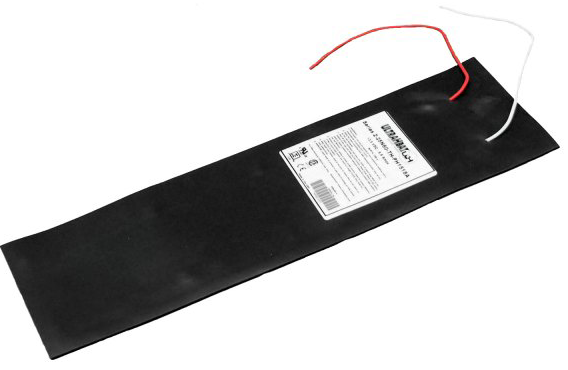

PH-312 | Pipe size 3 in.. | 7-1/2" x 12" | AMP Draw 4.1
PH-318 | Pipe size 3 in. | 7-1/2" x 18" | AMP Draw 6.1
PH-1512 | Pipe size 1-1/2 in. | 6" x 12" | AMP Draw 4.1
PH-1518 | Pipe size 1-1/2 in. | 6" x 18" | AMP Draw 6.6
PH-513 | Pipe size 1/2 in. | 3" x 12" | AMP Draw 2.3
PH-318 | Pipe size 3 in. | 7-1/2" x 18" | AMP Draw 6.1
PH-1512 | Pipe size 1-1/2 in. | 6" x 12" | AMP Draw 4.1
PH-1518 | Pipe size 1-1/2 in. | 6" x 18" | AMP Draw 6.6
PH-513 | Pipe size 1/2 in. | 3" x 12" | AMP Draw 2.3
13.5 VDC Only

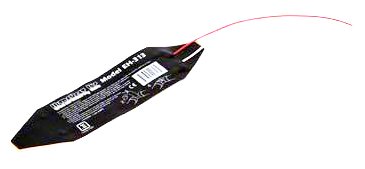

EH-313 | Pipe size 3 in.. | 3" x 13" | AMP Draw 1.8
EH-158 | Pipe size 1-1/2 in. | 3" x 8" | AMP Draw 0.9
EH-158 | Pipe size 1-1/2 in. | 3" x 8" | AMP Draw 0.9

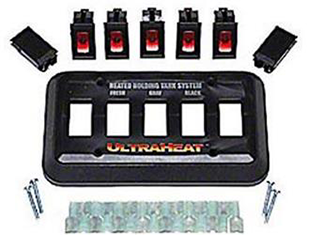

SWPK-5 | System Switch Kit

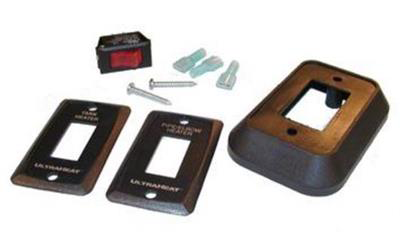

SWPK-1 | 1-Switch, 2- Plates (Tank/Pipe)
SWPK-1 | 1-Switch, 2- Plates (Tank/Pipe)
