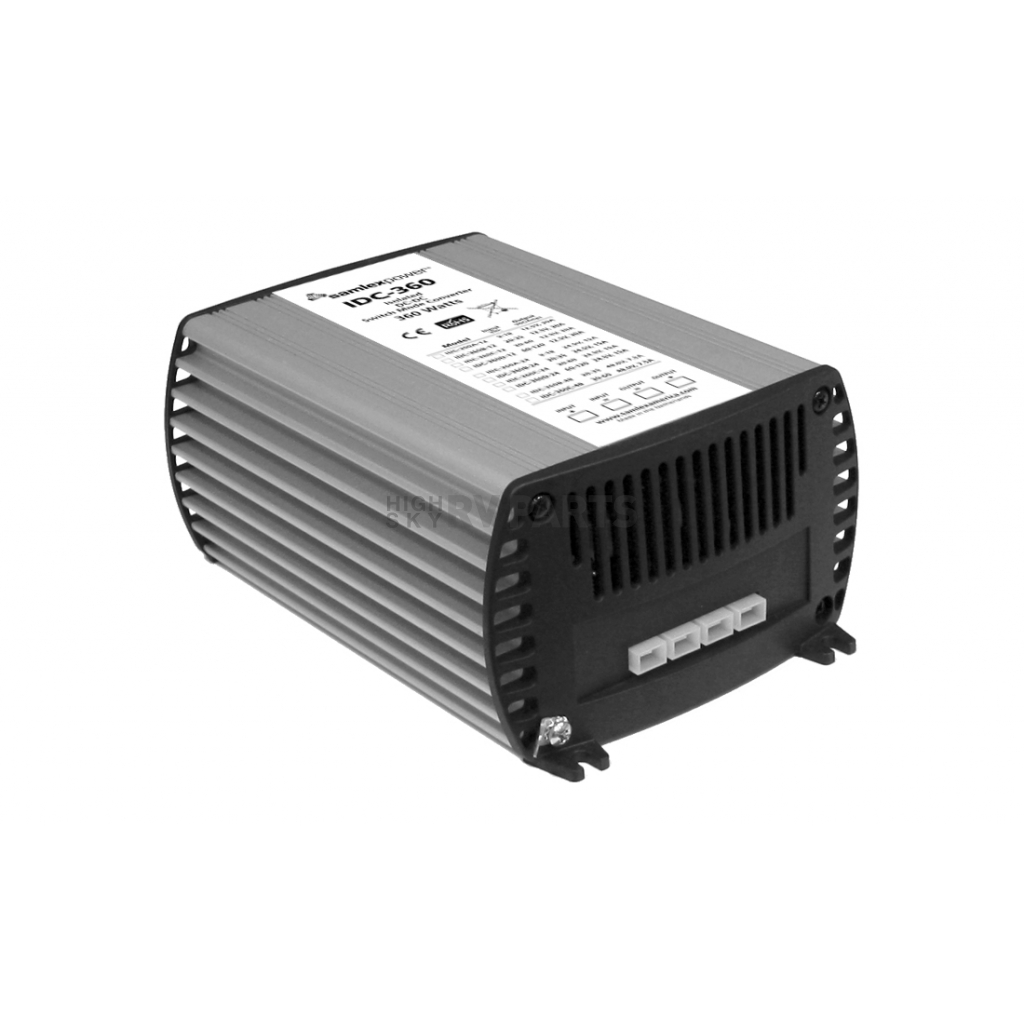

Samlex Solar IDC-360A-24 Power Converter 15 Amp Smart Battery Charger

Product cannot be returned
Brand: Samlex Solar Samlex Solar
0 reviews
  • Have a product question? Ask us
  • Part Number: IDC-360A-24
  • Part Location: U.S.
  • Availability: Discontinued
Ampere Rating
15 Amp
Continuous Output Power
360 Watt
Converts
8-18 Volt DC To 24.5 Volt DC
Efficiency
85 Percent
Height
3.2 Inch
Length
7.4 Inch
Number Of Outlets
2
Remote On/Off Capable
No
Width
5.2 Inch
With Battery Cables
No
With Built-In Charger
No
Share this page

Samlex Solar Power Converter

MPN: IDC-360A-24

IDC-360 series is a complete line of high efficiency 360 Watts isolated DC to DC converters suitable for applications requiring galvanic isolation between the input and the output. Isolated DC to DC converter provides a highly regulated output DC voltage of 24.5 Volt for an input DC voltage range of 9 To 18 Volt and rated output current of 15 Ampere (at 18 Volt input). Features of this isolated DC to DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4 Inch push-on flat blade “quick disconnect” connectors.
Converts: 8-18 Volt DC To 24.5 Volt DC
Continuous Output Power: 360 Watt
Ampere Rating: 15 Amp
Efficiency: 85 Percent
Number Of Outlets: 2
Length: 7.4 Inch
Width: 5.2 Inch
Height: 3.2 Inch
Remote On/Off Capable: No
With USB Port: No
With Volt/Watt Meter: No
With Short Circuit: Yes
With Reverse Battery Protection: Yes
With Thermal Protection: No
With Battery Cables: No
With Built-In Charger: No
With Fuse: No

Features

  • Fully Isolated
  • Short Circuit Protected
  • Limited 2 Year Warranty
Specifications of Samlex Solar IDC-360A-24 Power Converter 15 Amp Smart Battery Charger
Ampere Rating 15 Amp
Continuous Output Power 360 Watt
Converts 8-18 Volt DC To 24.5 Volt DC
Efficiency 85 Percent
Height 3.2 Inch
Length 7.4 Inch
Number Of Outlets 2
Remote On/Off Capable No
Width 5.2 Inch
With Battery Cables No
With Built-In Charger No
With Fuse No
With Reverse Battery Protection Yes
With Short Circuit Yes
With Thermal Protection No
With USB Port No
With Volt/Watt Meter No
Download Operating Manual for Samlex Solar IDC-360A-24 Power Converter 15 Amp Smart Battery Charger
Download Service Manual for Samlex Solar IDC-360A-24 Power Converter 15 Amp Smart Battery Charger
