Magnum Energy - Modified Sine Inverter/Charger - 600 W/1100 Peak - MM612
Brand:
Magnum Energy
Magnum Energy- Have a product question? Ask us
- Part Number: MM612
- Part Location: U.S.
- Availability: Discontinued
Ampere Rating
30 Amp
Continuous Output Power (W)
600 Watt
Efficiency
95 Percent
Height (IN)
4.7 Inch
Inverts
9-16 Volt DC To 120 Volt AC
Length (IN)
16.6 Inch
Number Of Outlets
1
Peak Output Power (W)
1100 Watt
Remote On/Off Capable
No
Width (IN)
8.4 Inch
With Battery Cables
No
Share this page
Magnum Energy Power Inverter
Power Inverter; MM Series; Inverts 9 To 16 Volt DC To 120 Volt AC; 600 Continuous Watts; 95 Percent Efficiency; With 1 AC Output; Without Volt/ Watt Meter; Not Remote Compactible; With Over Current Protection/ Over Temperature Protection On Transformer/ MOSFET And Battery; 16.6 Inch Length x 8.4 Inch Width x 4.7 Inch Height Panel Size; 8 Amps AC Input Circuit Breaker/ 7 Amps Output Circuit Breaker Switchable; On/ Off Invertor Mounted Switch With Easy To Read LED Indicator
MPN: MM612

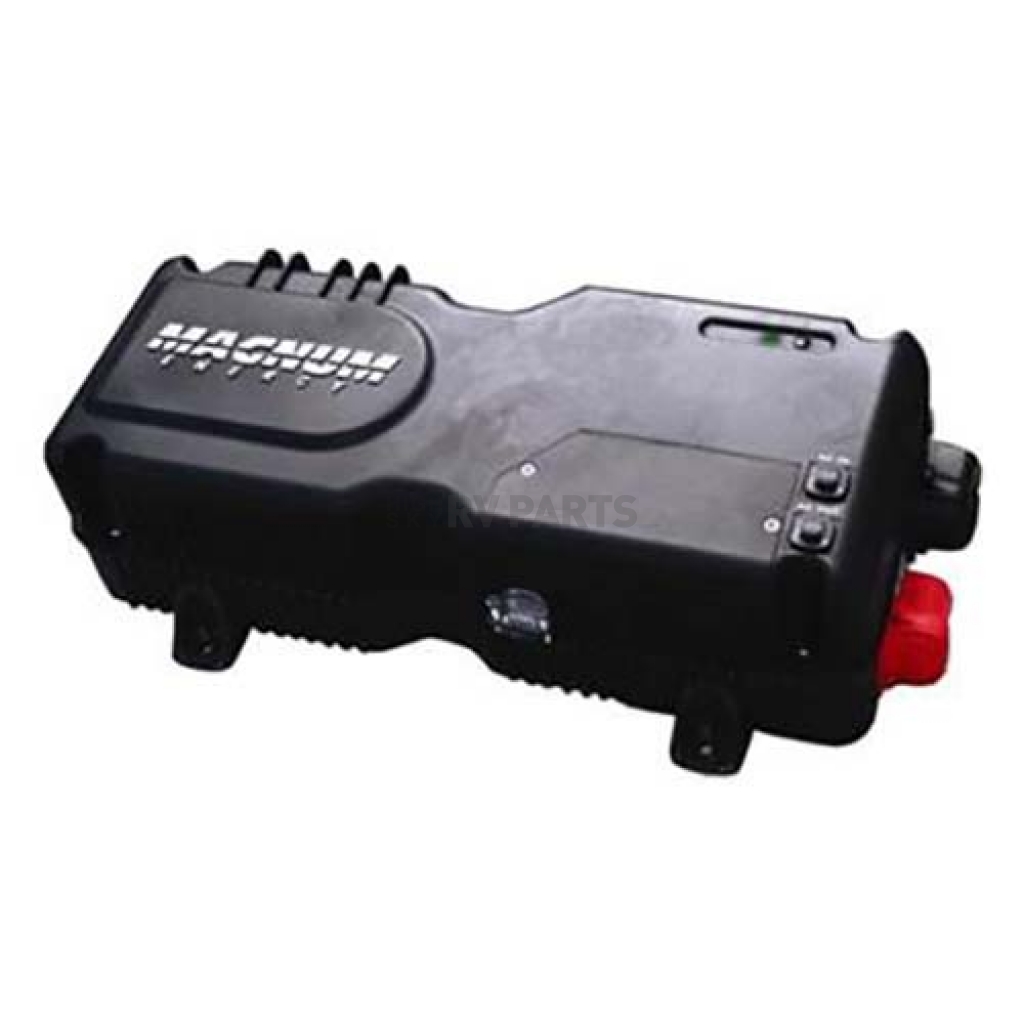

The MM Series Inverter / Charger is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Versatile, easy-to-use, and lightweight, the MM Series provides a reliable base for your energy system. Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation
Inverts: 9 To 16 Volt DC To 120 Volt AC
Continuous Output Power (W): 600 Watt
Peak Output Power (W): 1100 Watt
Ampere Rating: 30 Amp
Efficiency: 95 Percent
Number Of Outlets: 1
Length (IN): 16.6 Inch
Width (IN): 8.4 Inch
Height (IN): 4.7 Inch
Remote On/Off Capable: No
With USB Port: No
With Volt/Watt Meter: No
With Short Circuit: No
With Reverse Battery Protection: No
With Thermal Protection: Yes
With Battery Cables: No
With Built-In Charger: Yes
With Fuse: No
Features
- Standard Transfer Relay
- Fan Cooled
- High/Low Battery Protection. Current Overload Protection
- Convenient Switches
- Battery Temperature Sensor
- Circuit Breaker Protection. Easy-To-Use, And Lightweight
- Versatile Mounting
- Limited 2 Year Warranty
| Length | 16.6" |
| Width | 8.4” |
| Height | 4.7” |
| Specifications of Magnum Energy - Modified Sine Inverter/Charger - 600 W/1100 Peak - MM612 | |
| Ampere Rating | 30 Amp |
| Continuous Output Power (W) | 600 Watt |
| Efficiency | 95 Percent |
| Height (IN) | 4.7 Inch |
| Inverts | 9-16 Volt DC To 120 Volt AC |
| Length (IN) | 16.6 Inch |
| Number Of Outlets | 1 |
| Peak Output Power (W) | 1100 Watt |
| Remote On/Off Capable | No |
| Width (IN) | 8.4 Inch |
| With Battery Cables | No |
| With Built-In Charger | Yes |
| With Fuse | No |
| With Reverse Battery Protection | No |
| With Short Circuit | No |
| With Thermal Protection | Yes |
| With USB Port | No |
| With Volt/Watt Meter | No |
Download Operating Manual for Magnum Energy - Modified Sine Inverter/Charger - 600 W/1100 Peak - MM612
