RV Designer AC Receptacles & DC Switches

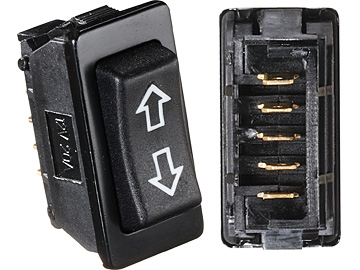

DC Rocker Switch - 40 Amp
20 Amp Continous. 40 Amp Peak for motor switching / reversing applications. In-Line 5PIN.
Cut-Out: 1.52" x 0.73". Mounting plate text "Slide Room". Separate Harness is 6" long with a 5 Pin Connector.
Typical Applications: Slide Out, Power Seats, Sofas, Door Locks, Windows. S125 | Black Rocker Switch, 40A, w/Plate
S129 | Harness for above

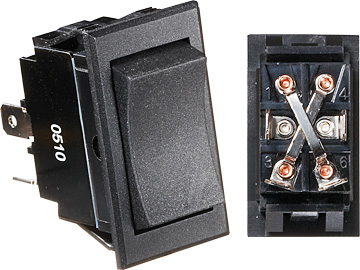

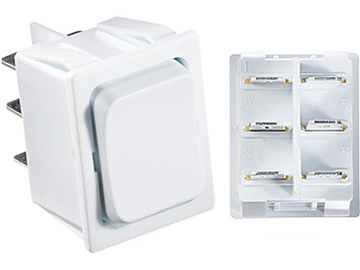

DC Rocker Switch - 20 Amp
Momentary On/Off/ Momentary On. Cut out 1.46" x 0.83". DPDT.
Typical Applications: Slide Out, Power Sofas, Generator. S221 | Black Rocker Switch, 20A, 4 X Terminal
S225 | Black Rocker Switch, 20A, 6 Teriminal
DC Rocker Switch - 5-10 Amp, Cutout .508" x .756"
14 VDC.
Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control. S431 | Black Rocker Switch, 10A On/Off SPST

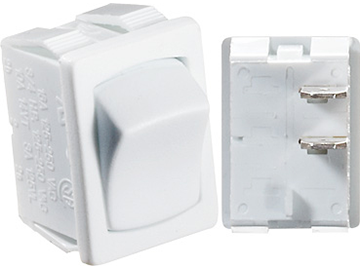

S435 | White Rocker Switch, 10A On/Off SPST
S441 | Black Rocker Switch, 5A Momentary On/Off SPST
S451 | Black Rocker Switch, 5A On/Off/On DPDT
S461 | Black Rocker Switch, 5A Momentary On/Off Momentary On DPDT
DC Rocker Switch - 5 Amp, Cutout .872" x 1.071"
14 VDC.
Typical Applications: Slide Out, Power Sofas, Generator. S471 | Black Rocker Switch, 5A Momentary On/Off Momentary On DPDT

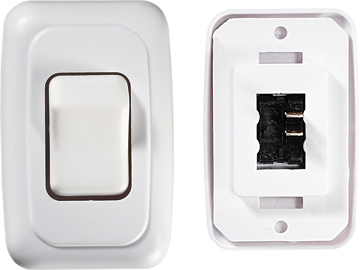

DC Wall Switches - in Plates
Contemporary Contour design. Includes; Switch, base and bezel, Cut Out- Single: 1 5/8" H x 1 1/4" W
Double: 1 5/8" x 2 7/16" Triple: 1 5/8" x 3 5/8". Countour On / Off
Typical Applications: Lighting Control, Entry Steps, Appliances. S521 | Contoured Wall Switch, Black, Single
S531 | Contoured Wall Switch, White, Single
20 Amp Continous. 40 Amp Peak for motor switching / reversing applications. In-Line 5PIN.
Cut-Out: 1.52" x 0.73". Mounting plate text "Slide Room". Separate Harness is 6" long with a 5 Pin Connector.
Typical Applications: Slide Out, Power Seats, Sofas, Door Locks, Windows. S125 | Black Rocker Switch, 40A, w/Plate
S129 | Harness for above
DC Rocker Switch - 20 Amp
Momentary On/Off/ Momentary On. Cut out 1.46" x 0.83". DPDT.
Typical Applications: Slide Out, Power Sofas, Generator. S221 | Black Rocker Switch, 20A, 4 X Terminal
S225 | Black Rocker Switch, 20A, 6 Teriminal
DC Rocker Switch - 5-10 Amp, Cutout .508" x .756"
14 VDC.
Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control. S431 | Black Rocker Switch, 10A On/Off SPST
S435 | White Rocker Switch, 10A On/Off SPST
S441 | Black Rocker Switch, 5A Momentary On/Off SPST
S451 | Black Rocker Switch, 5A On/Off/On DPDT
S461 | Black Rocker Switch, 5A Momentary On/Off Momentary On DPDT
DC Rocker Switch - 5 Amp, Cutout .872" x 1.071"
14 VDC.
Typical Applications: Slide Out, Power Sofas, Generator. S471 | Black Rocker Switch, 5A Momentary On/Off Momentary On DPDT
DC Wall Switches - in Plates
Contemporary Contour design. Includes; Switch, base and bezel, Cut Out- Single: 1 5/8" H x 1 1/4" W
Double: 1 5/8" x 2 7/16" Triple: 1 5/8" x 3 5/8". Countour On / Off
Typical Applications: Lighting Control, Entry Steps, Appliances. S521 | Contoured Wall Switch, Black, Single
S531 | Contoured Wall Switch, White, Single

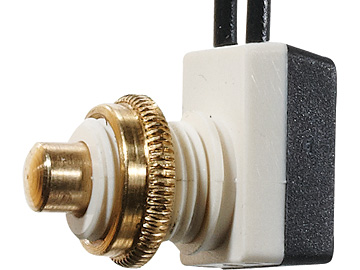

DC Specialty Switches
Typical Applications: Commonly Used as a Vent Switch.
S711 | Push Button On/Off Switch, 3A, 125VAC
S721 | Toggle Switch On/Off, with 6" Leads, 8A 125 VAC
S731 | Push On-Push Off, 10A, SPST, with 4.5" Leads
S741 | Normally Closed Momentary Open, Push Button Swith, 3A 125 VAC with 4.5" Leads Switch activates appliance when vent is open.
When plunger is depressed appliance is off.
DC Rocker Switch - 10 Amp, Cutout .550" x 1.125"
14 VDC.
Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control.

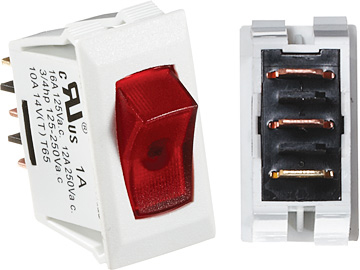

Kill Switch for Galley section of Pop Up Campers (S321)** S245 | Black w/Red Rocker Switch, 125 VAC Illuminated On/Off - SPST
S247 | Black w/Red Rocker Switch, 10A Illuminated On/Off - SPST
S261 | Black Rocker Switch, 10A ON/OFF - SPST
S265 | White Rocker Switch w/Gold text, 10A ON/OFF - SPST
S269 | Black Rocker Switch w/ Silver text, 10A ON/OFF - SPST
S279 | Ivory Rocker Switch w/ Gold Text, 10A ON/OFF - SPST
S321 | Black Rocker Switch, 10A Momentary On/ Off - SPST**
S385 | Black, Single Mounting Plates
DC Specialty Switches
Typical Applications: Commonly Used as a Replacement Interior Light Switch
S751 | Push On-Push Off Switch, 10A, SPST, with 8" Leads
AC Flush Mounts in Plate
S971 | 30 Amp
Typical Applications: Commonly Used as a Vent Switch.

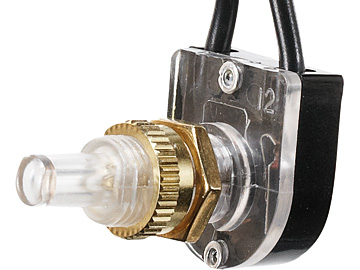

S711 | Push Button On/Off Switch, 3A, 125VAC
S721 | Toggle Switch On/Off, with 6" Leads, 8A 125 VAC
S731 | Push On-Push Off, 10A, SPST, with 4.5" Leads
S741 | Normally Closed Momentary Open, Push Button Swith, 3A 125 VAC with 4.5" Leads Switch activates appliance when vent is open.
When plunger is depressed appliance is off.
DC Rocker Switch - 10 Amp, Cutout .550" x 1.125"
14 VDC.
Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control.
Kill Switch for Galley section of Pop Up Campers (S321)** S245 | Black w/Red Rocker Switch, 125 VAC Illuminated On/Off - SPST
S247 | Black w/Red Rocker Switch, 10A Illuminated On/Off - SPST
S261 | Black Rocker Switch, 10A ON/OFF - SPST
S265 | White Rocker Switch w/Gold text, 10A ON/OFF - SPST
S269 | Black Rocker Switch w/ Silver text, 10A ON/OFF - SPST
S279 | Ivory Rocker Switch w/ Gold Text, 10A ON/OFF - SPST
S321 | Black Rocker Switch, 10A Momentary On/ Off - SPST**
S385 | Black, Single Mounting Plates
DC Specialty Switches
Typical Applications: Commonly Used as a Replacement Interior Light Switch
S751 | Push On-Push Off Switch, 10A, SPST, with 8" Leads
AC Flush Mounts in Plate
S971 | 30 Amp
AC GFCI Outlet With Cover-Plate
Ground Fault Circuit Interrupter (GFCI).
Use on 125V AC Grounded Two-Wire Branch Circuits (15A or 20A overcurrent protected systems). S801 | White Dual GFCI Outlet w/Cover-Plate
S805 | Brown Dual GFCI Outlet w/Cover-Plate

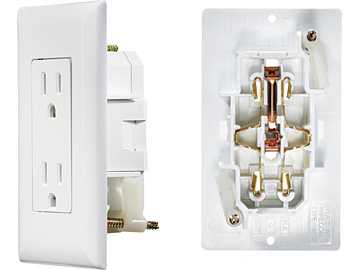

AC "Self Contained" Dual Outlets With Cover-Plate
Dual AC Outlet. “Self Contained” design with cover plate. 125 VAC, UL Listed. Fasteners included.
S811 | White Dual Outlet w/Cover-Plate
S815 | Brown Dual Outlet w/Cover-Plate
S817 | Black Dual Outlet w/Cover-Plate

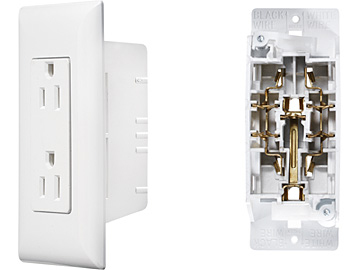

AC "Self Contained" Contemporary Dual Outlet, Speedwire With Cover-Plate
125V AC.
S831 | White Dual Outlet w/Cover-Plate

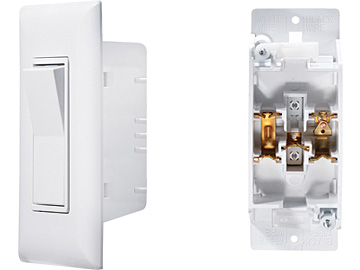

AC "Self Contained" Contemporary Switch, Speedwire With Cover-Plate
125V AC.
S841 | White Touch Switch w/Cover-Plate
S843 | Ivory Touch Switch w/Cover-Plate

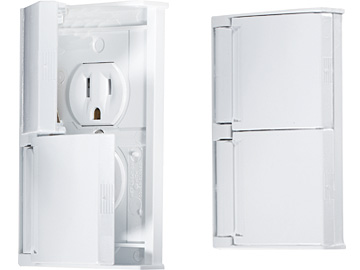

AC Weatherproof Receptacle
S901 | Weatherproof Dual Outlet w/ Snap Cover-Plate - Gray
S905 | Weatherproof Dual Outlet w/ Snap Cover-Plate - White
S907 | Weatherproof Dual Outlet w/ Snap Cover-Plate - Black
S904 | Snap Cover-Plate Only - Black
S911 | Snap Cover-Plate Only - Gray
E365 | Snap Cover-Plate Only - White
Ground Fault Circuit Interrupter (GFCI).
Use on 125V AC Grounded Two-Wire Branch Circuits (15A or 20A overcurrent protected systems). S801 | White Dual GFCI Outlet w/Cover-Plate
S805 | Brown Dual GFCI Outlet w/Cover-Plate
AC "Self Contained" Dual Outlets With Cover-Plate
Dual AC Outlet. “Self Contained” design with cover plate. 125 VAC, UL Listed. Fasteners included.
S811 | White Dual Outlet w/Cover-Plate
S815 | Brown Dual Outlet w/Cover-Plate
S817 | Black Dual Outlet w/Cover-Plate
AC "Self Contained" Contemporary Dual Outlet, Speedwire With Cover-Plate
125V AC.
S831 | White Dual Outlet w/Cover-Plate
AC "Self Contained" Contemporary Switch, Speedwire With Cover-Plate
125V AC.
S841 | White Touch Switch w/Cover-Plate
S843 | Ivory Touch Switch w/Cover-Plate
AC Weatherproof Receptacle
S901 | Weatherproof Dual Outlet w/ Snap Cover-Plate - Gray
S905 | Weatherproof Dual Outlet w/ Snap Cover-Plate - White
S907 | Weatherproof Dual Outlet w/ Snap Cover-Plate - Black
S904 | Snap Cover-Plate Only - Black
S911 | Snap Cover-Plate Only - Gray
E365 | Snap Cover-Plate Only - White
