Progressive Dynamics Converter/Chargers & Inverters
THESE PRODUCTS FEATURE OUR 2 YEAR "NO HASSLE" WARRANTY
With Built-In Charge Wizard
Input: 105-130 VAC, 50/60 Hz, 1250 Watts
Output: 13.6 VDC, 70 Amp
Dimensions: 9.15"L x 7.38"W x 3.6"H
Weight: 5.8 lbs.
PD9260-CV | 60 Amp Converter/Charger with built-in Charge Wizard

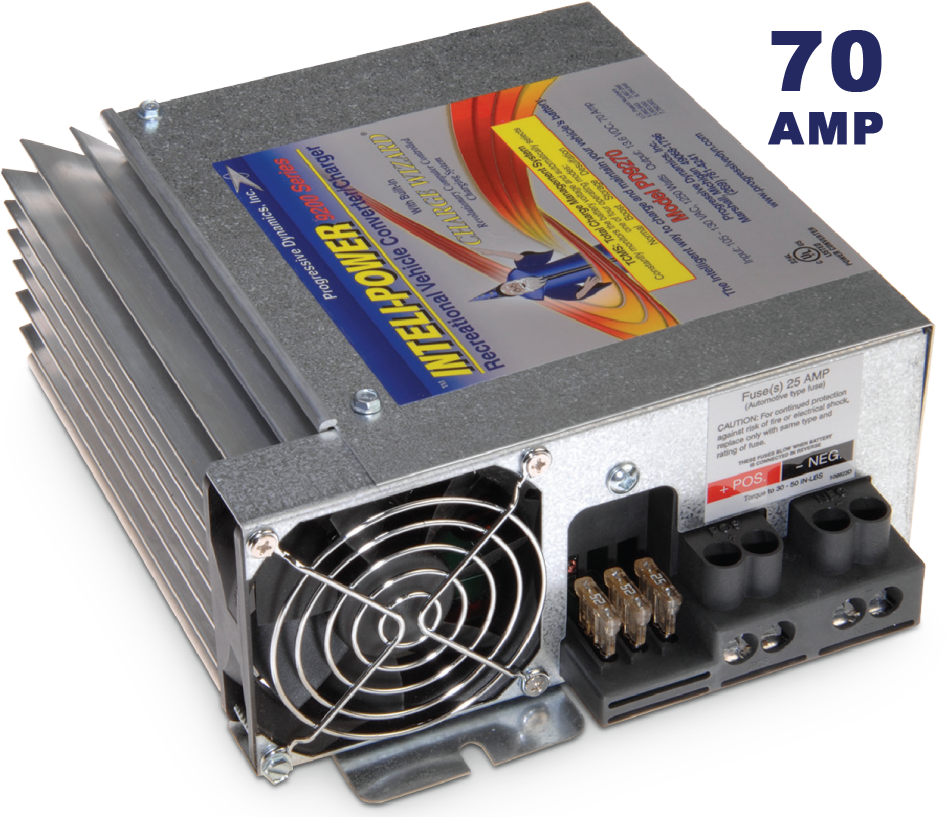

PD9270V | 70 Amp Converter/Charger with built-in Charge Wizard
PD9280AV | 80 Amp Converter/Charger with built-in Charge Wizard
Input: 105-130 VAC, 50/60 Hz, 1000 Watts
Output: 13.6 VDC, 60 Amp
Dimensions: 9.15"L x 7.38"W x 3.6"H
Weight: 5.8 lbs.
* Charge Wizard purchased seperately.
PD9140AV | 40 Amp Converter/Charger
PD9145AV | 45 Amp Converter/Charger

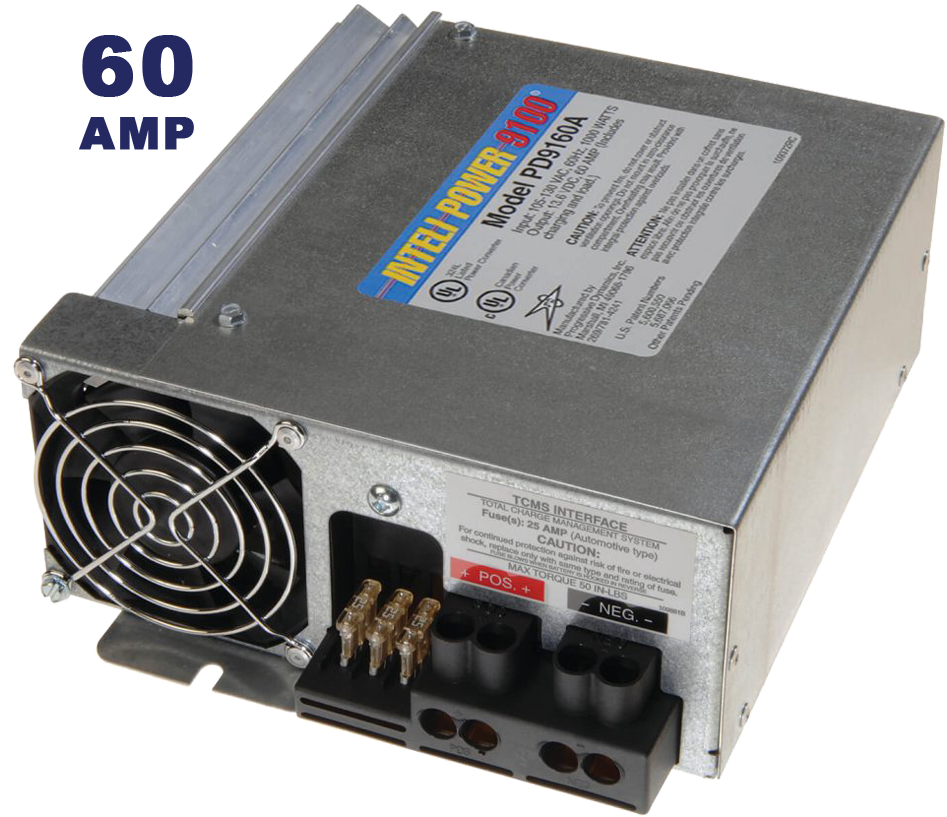

PD9160AV | 60 Amp Converter/Charger
PD9180AV | 80 Amp Converter/Charger
PD9105V | Charge Wizard® (9100 Series)
RV CONVERTER/CHARGERS INTELI-POWER 4000, 4500, 4135 SERIES
THESE PRODUCTS FEATURE OUR 2 TUR "NO HASSLE" WARRANTY AND BUILT-IN CHARGE WIZARD TECHNOLOGY
Model PD4060
"Mighty Mini" The Compact All-In-One System...
AC/DC Distribution Panel and Inteli-Power Converter with Lithium Switch to work with Lead Acid Batteries & Lithium Batteries.
PD4045CSV | 45 Amp Replacement Converter for PD4045KV
PD4060KV | 60 Amp Converter/Charger with built-in Charge Wizard
PD4060CSV | 60 Amp Replacement Converter for PD4060KV
"Mighty Mini" The Compact All-In-One System...
AC/DC Distribution Panel and Inteli-Power Converter with Lithium Switch to work with Lead Acid Batteries & Lithium Batteries.
PD4045CSV | 45 Amp Replacement Converter for PD4045KV
PD4060KV | 60 Amp Converter/Charger with built-in Charge Wizard
PD4060CSV | 60 Amp Replacement Converter for PD4060KV

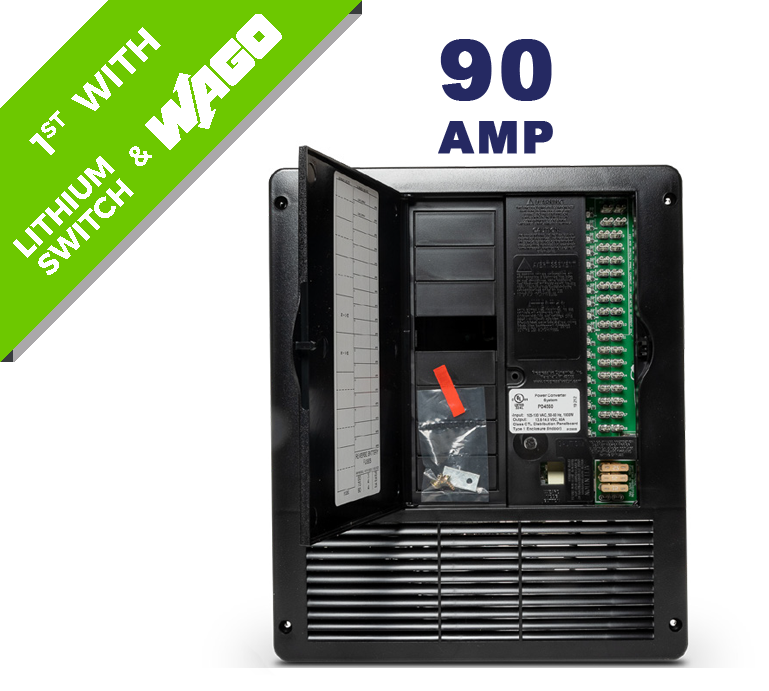

Model PD4590
The Ultimate All-In-One 240V AC/DC Distribution panel with Lithium Switch to work with Lead Acid Batteries & Lithium Batteries.
PD4560CSV | Amp Replacement Converter
PD4590V | 90 Amp Converter/Charger with built-in Charge Wizard
PD4590CSV | Amp Replacement Converter
The Ultimate All-In-One 240V AC/DC Distribution panel with Lithium Switch to work with Lead Acid Batteries & Lithium Batteries.
PD4560CSV | Amp Replacement Converter
PD4590V | 90 Amp Converter/Charger with built-in Charge Wizard
PD4590CSV | Amp Replacement Converter
Model PD4135
AC/DC Distribution Panel and Power Converter with Built-in Charge Wizard Direct Replacment for WFCO8735!
AC/DC Distribution Panel and Power Converter with Built-in Charge Wizard Direct Replacment for WFCO8735!
RV CONVERTER/CHARGERS INTELI-POWER 4600 SERIES
THESE PRODUCTS FEATURE OUR 2 YEAR "NO HASSLE" WARRANTY AND BUILT-IN CHARGE WIZARD” TECHNOLOGY
Upgrade or Replacement for Many RV Power Center Converter/Chargers
PD4645V | 45 Amp Converter/Charger with built-in Charge Wizard
PD4655V | 55 Amp Converter/Charger with built-in Charge Wizard
THESE PRODUCTS FEATURE OUR 2 YEAR "NO HASSLE" WARRANTY AND BUILT-IN CHARGE WIZARD” TECHNOLOGY
Upgrade or Replacement for Many RV Power Center Converter/Chargers
PD4645V | 45 Amp Converter/Charger with built-in Charge Wizard
PD4655V | 55 Amp Converter/Charger with built-in Charge Wizard

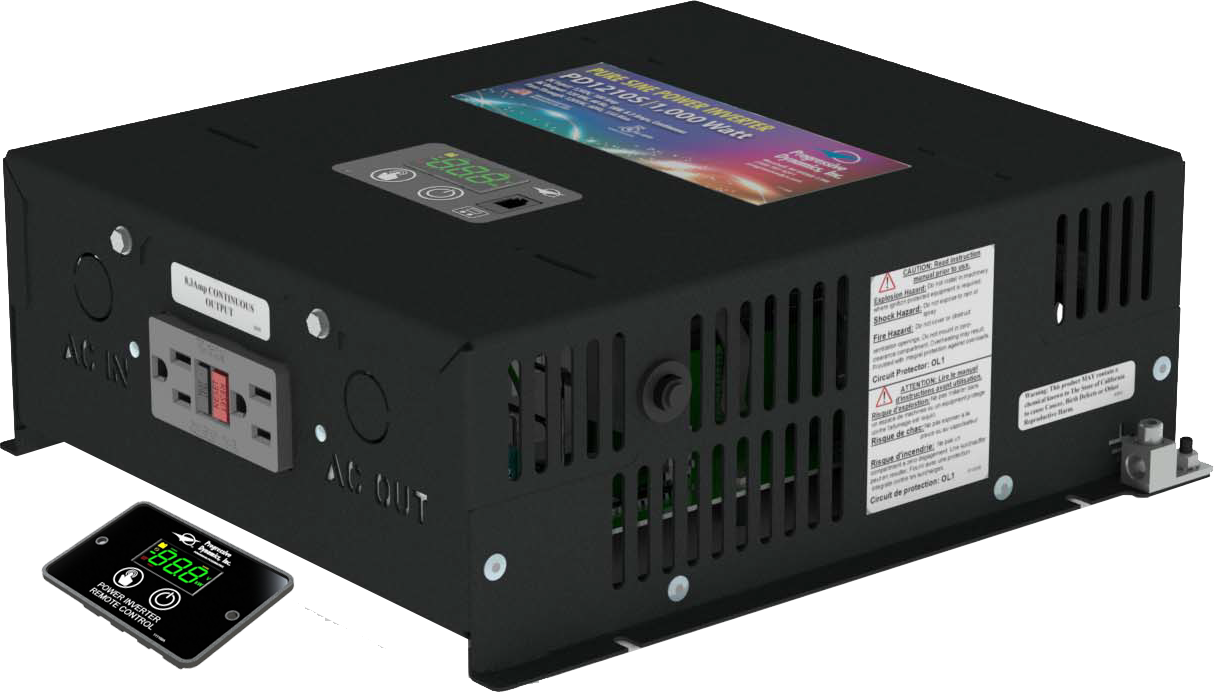

INTELI-POWER 1000 WATT PURE SINE INVERTER
Reverse battery protection
Thermally controlled fan speed
Remote control (sold separately)
Auto restart after power interrupt
Easy AC hardwire hookup
Conforms to UL STD 458, Certified to CSA STD C22.2 No. 107.1
Units available with built-in GFCI
DC lug connection
Unit weight: 10 lbs
Unit dimensions: 11.6 x 9.46 x 4.07
1,000 watt continuous power
2,000 watt peak power
PD12011V | Remote Control f/1000 Watt Inverter
PD12011V | Remote Control f/1000 Watt Inverter
AUTOMATIC TRANSFER SWITCHES INTELI-POWER
THESE PRODUCTS FEATURE OUR 1 YEAR "NO HASSLE" WARRANTY

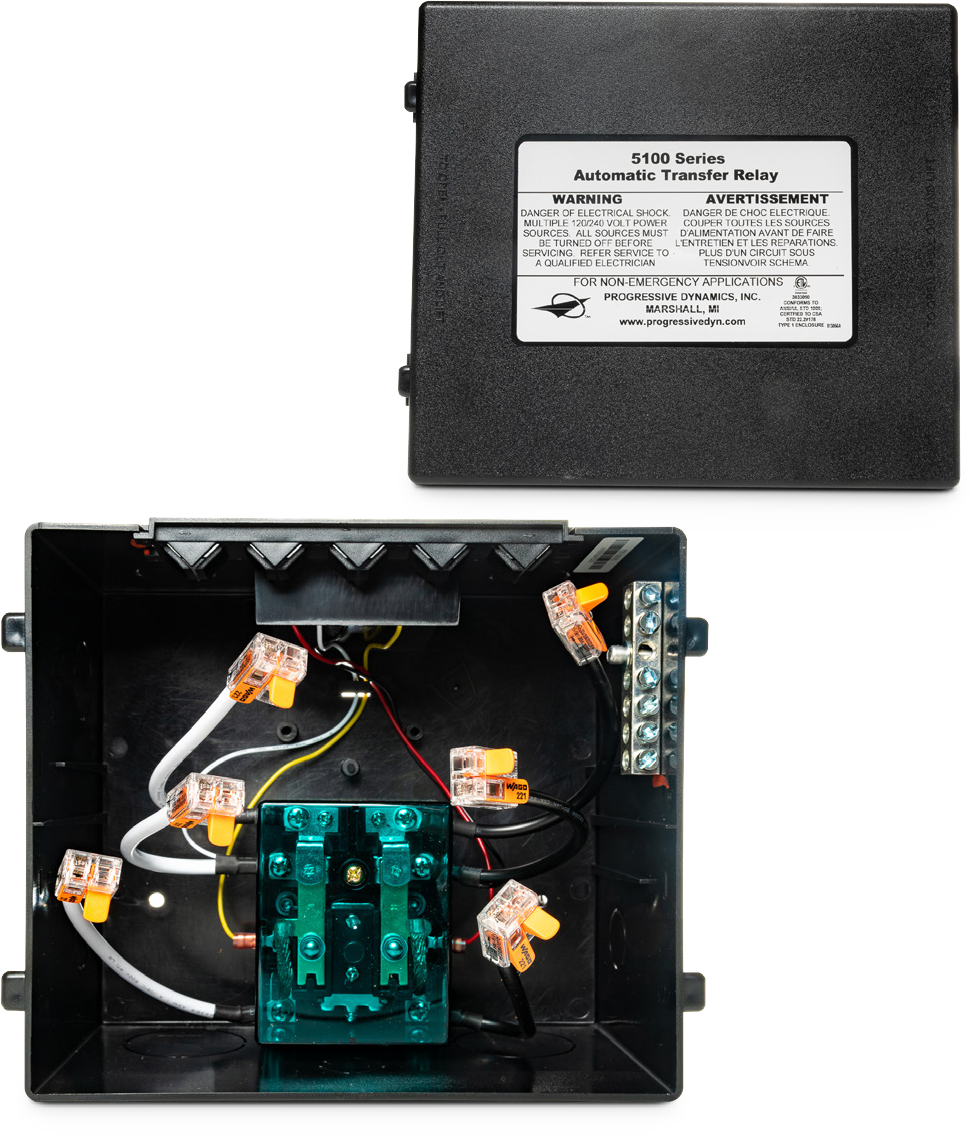

PD5100 & PD5200 Series
PD5110010QV | 30 Amp Automatic Transfer Switch w/Wago Connectors

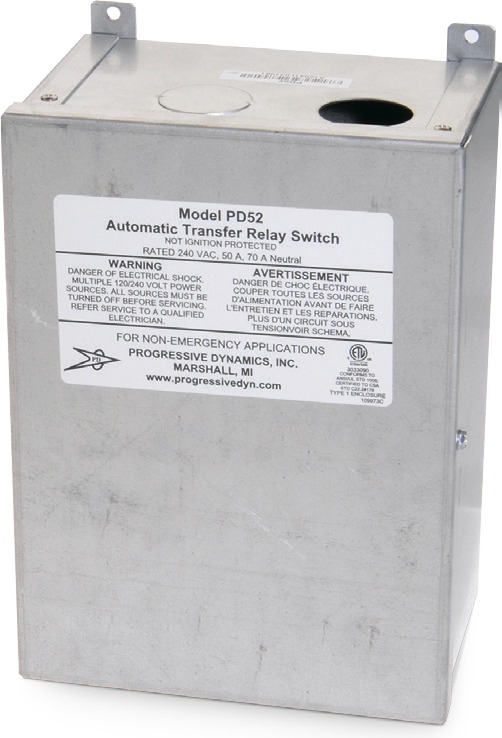

PD52V | 50 Amp Automatic Transfer Switch
PD52DCSDV | THE "SILENT" ATS
50 Amp Automatic Surge Protected Transfer
Switch with High Voltage Protection!
PD52V | 50 Amp Automatic Transfer Switch
PD52DCSDV | THE "SILENT" ATS
50 Amp Automatic Surge Protected Transfer
Switch with High Voltage Protection!
LITHIUM CONVERTER CHARGERS A lithium battery system provides the advantages of:
Faster recharge from both converter/charger and solar charging systems. Fully recharge a lithium 100 AH battery in 2-1/2 hours vs. 6-12 hours for lead/acid. Longer battery life, up to 5,000 recharge cycles vs. 300-400 for lead/acid. Up to three times the energy as compared to a like sized (Amp hour rating) of a lead/acid battery at approximately 1/2 the weight! No battery maintenance required and they do not have to be charged during storage. Make sure you get a Progressive Dynamics Lithium Battery converter/charger to ensure peak performance.
STANDARD FEATURES - ALL MODELS:
Reverse Battery Protection: Prevents charger damage if battery connections are accidentally reversed.
Provides Filtered DC Power: Ensures proper lithium Battery Management System (BMS) operation.
Electronic Current Limiting: Reduces output voltage to prevent overheating and possible damage.
High & Low Voltage Protection: Prevents charger damage from AC input voltage fluctuations.
Automatic Thermal Protection: Reduces charger output to safe levels if unit temperature exceeds safe levels pre-set limits and protects charger damage due to excessive heat.
Intelligent Cooling Fan: Operates only under nigh load conditions.
PD9100L SERIES
PD9130LV | 30-AMP Converter/Charger
PD9140ALV | 40-AMP Converter/Charger
PD9145ALV | 45-AMP Converter/Charger
PD9160ALV | 60-AMP Converter/Charger
PD9180ALV | 80-AMP Converter/Charger
PD9140ALV | 40-AMP Converter/Charger
PD9145ALV | 45-AMP Converter/Charger
PD9160ALV | 60-AMP Converter/Charger
PD9180ALV | 80-AMP Converter/Charger
PD4600L SERIES

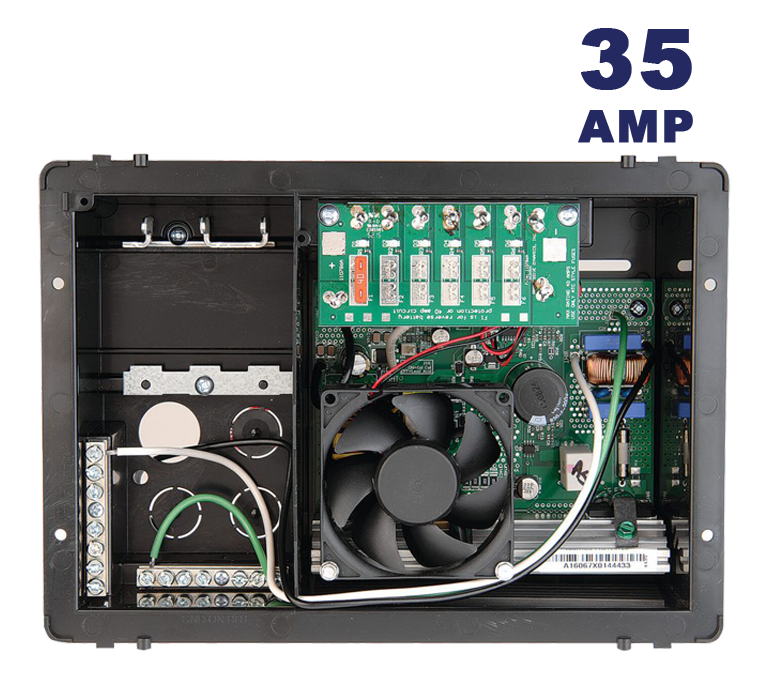

PD4635LIV | 35amp Lithium Converter/Charger - Replacement Section
PD4645LIV | 45amp Lithium Converter/Charger - Replacement Section
PD4655LIV | 5amp Lithium Converter/Charger - Replacement Section
PD4645LIV | 45amp Lithium Converter/Charger - Replacement Section
PD4655LIV | 5amp Lithium Converter/Charger - Replacement Section
CHARGE WIZARD
TIRED OF REPLACING BATTERIES? The Charge Wizard has been shown to increase battery life by 2 to 3 times or more.
Our Charge Wizard 4-stage system uses microprocessor technology to add intelligent charging capability. It constantly monitors the RV battery and automatically adjusts the converter
output voltage based on the battery’s charge status - designed to eliminate battery over & under charging problems associated with most other
battery chargers and provide rapid yet safe battery recharging after dry camping.
NORMAL MODE - 13.6 Volts – Safely completes the charge.
STORAGE MODE - 13.2 Volts – Maintains charge with minimal gassing or water loss.
EQUALIZATION MODE - 14.4 Volts – Every 21 hours for a period of 15 minutes helps prevents battery stratification & sulfation — the leading cause of battery failure.
NORMAL MODE - 13.6 Volts – Safely completes the charge.
STORAGE MODE - 13.2 Volts – Maintains charge with minimal gassing or water loss.
EQUALIZATION MODE - 14.4 Volts – Every 21 hours for a period of 15 minutes helps prevents battery stratification & sulfation — the leading cause of battery failure.
