PPS Circuit Breakers & Outdoor Power Outlets

SAFE, DURABLE & RELIABLE RV POWER PANELS
Ideal for Park or Home Use!

Parallax outdoor RV power outlets provide electrical receptacles in a single enclosure. This series of power outlets are heavy-duty, powder-coated steel, with drop away NEMA 3R rain-tight doors. Unique cover design allows cords to be used when door is closed. Choose from four 120 volt models.
All Parallax Power Supply products meet the UL requirements needed for recreational vehicle use and come standard with a 2 year limited warranty.

Now accommodates ergonomic handles on RV Power Cords

30 & 50 Amp Dual Service

20 Amp GFI duplex receptacle

Drop away NEMA 3R rain-tight door

Hub provision provided

Surface mount-unmetered

MFG.#	AMPS	VOLTS	NEMA RECEP.	CIRCUIT PROTECTION	DIMENSIONS H x W x D
U075CTL010	80	120/240	TT-30R & 5-20R2 GFI & 14-50R	20A-1 & 30A-1 & 50A-2 Pole	14" x 10-1/2" x 7"
U013P	30	120	TT-30R	N/A	6-1/8" x 5-3/8" x 4-3/4"
U054P	50	120/240	14-50R	N/A	6-1/8" x 5-3/8" x 4-3/4"
U041C010P	30	120/240	TT-30R & 5-20R2 GFI	20A-1 & 30A-1 Pole	12-3/8" x 7-1/8" x 4-3/4"

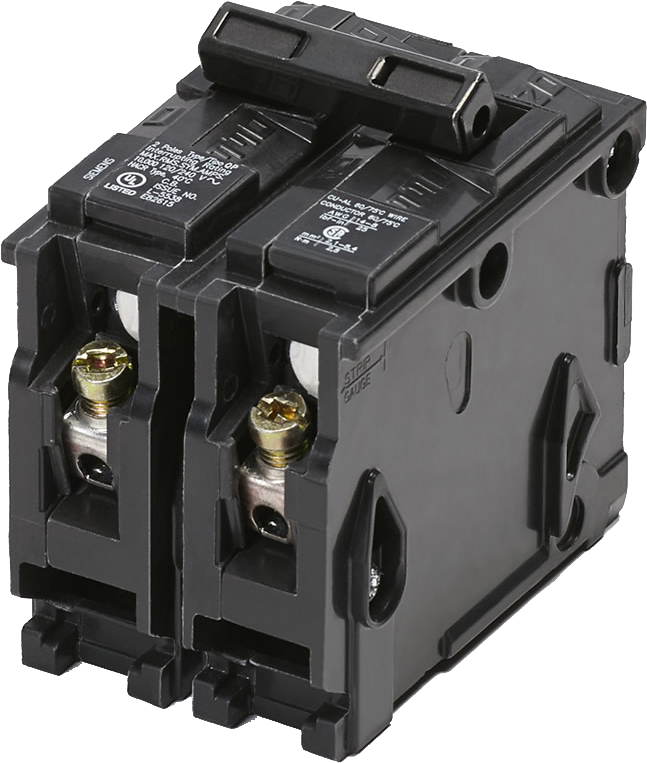

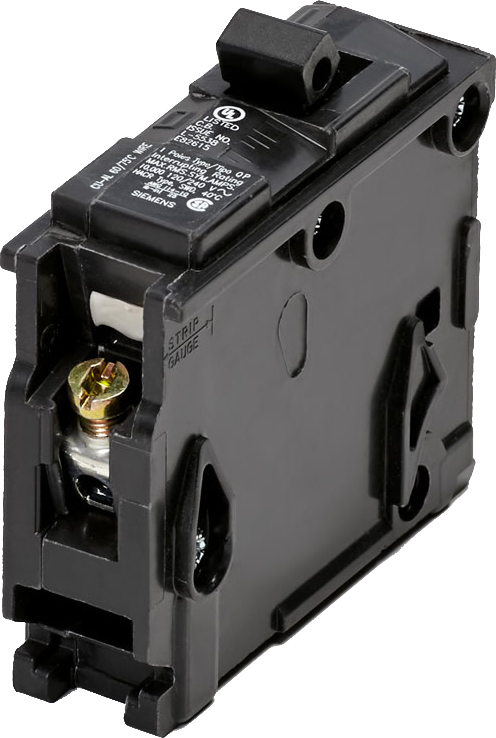

CIRCUIT BREAKERS
Accommodates aluminum or copper wire. Plug in. Requires one 1" space, 120V AC, 10,000 AIC.
