Magnum Energy Inverter/Chargers & Accessories
DESIGNED FOR RVS The diverse line of Magnum Energy inverters and inverter/chargers from Sensata Technologies was designed with RVs in mind. Our versatile inverter/ chargers work with most battery chemistries, are fully programmable, and are quiet. With models ranging from 400W to 4000W, in both sinewave and modified sinewave configurations, and 12, 24, and 48V options, there is a Magnum Energy inverter or inverter/charger right for you.

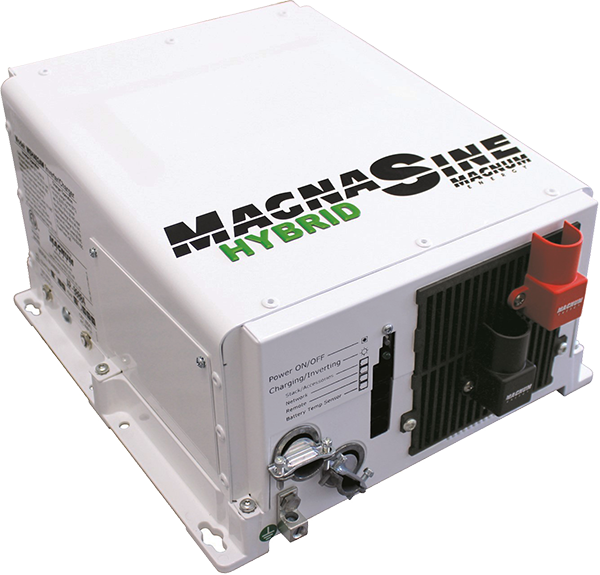

Hybrid technology: Most inverters only use one source of energy to power loads, either from shore/AC generator or from the batteries.
The MSH-M Series combines both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
| MFG.# | DESCRIPTION |
| MSH3012M | MSH-M Series Hybrid Inverter/Charger 3000W Inverter 125A Charger |
| MSH4024M | MSH-M Series Hybrid Inverter/Charger 4000W Inverter 110A Charger |

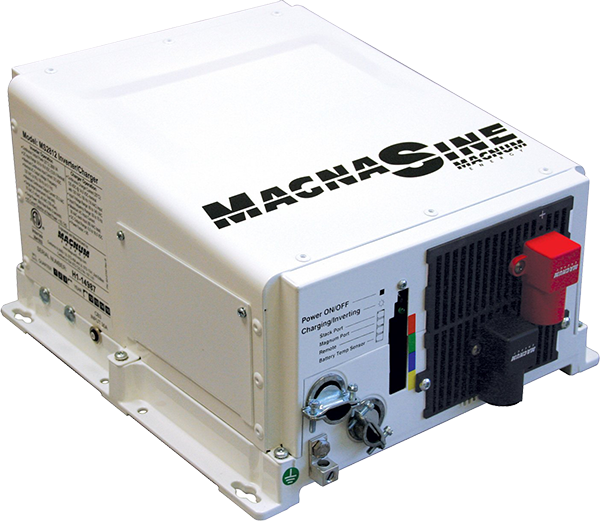

MS SERIES INVERTER/CHARGER
| MFG.# | DESCRIPTION |
| MS2012 | MS Series 2000W Inverter 100A Charger |
| MS2012-20B | MS Series 2000W Inverter 10OA Charger Two 20AAC Breakers |
| MS2812 | MS Series 2800W Inverter 125A Charger |
| MS4024 | MS Series 4000W Inverter 105A Charger |

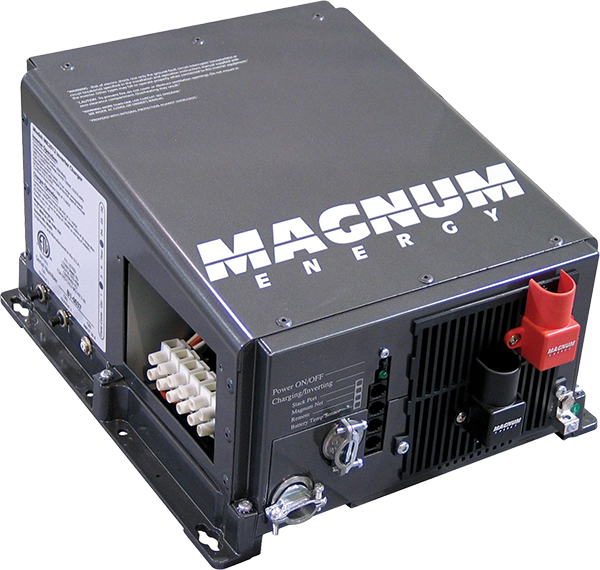

ME SERIES INVERTER/CHARGER
| MFG.# | DESCRIPTION |
| ME2012 | ME Series 2000W Inverter 100A Charger |
| ME2012-20B | ME Series 2000W Inverter 100A Charger Two 20AAC Breakers |
| ME2512 | ME Series 2500W Inverter 120A Charger |
| ME3112 | ME Series 3100W Inverter 160A Charger |
MMS SERIES INVERTER/CHARGER
| MFG.# | DESCRIPTION |
| MMS1012 | MMS Series 1000W Inverter 50A Charger |

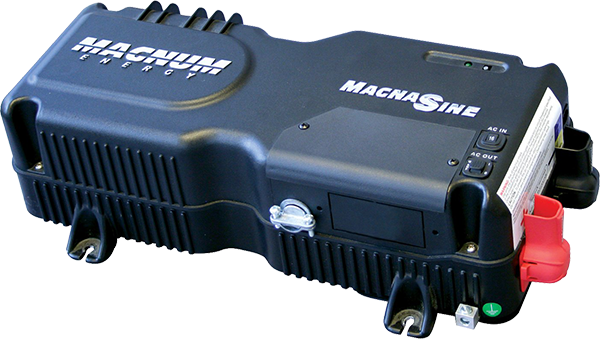

MM SERIES INVERTER & INVERTER/CHARGER
| MFG.# | DESCRIPTION |
| MM612 | MM Series 600W Inverter Only |
| MM1212 | MM Series 1200W Inverter 70A Charger |
CMW SERIES INVERTER
| MFG.# | DESCRIPTION |
| CMW412 | CMW Series 400W Inverter, 12VDC Input |
| CMW1012 | CMW Series 1000W Inverter, 12VDC Input |
| CMW1512 | CMW Series 1500W Inverter, 12VDC Input |
| CMW3012H | CMW Series 3000W Inverter, 12VDC Input, Access to AC Wiring Terminals for Hardwire |
CSW SERIES INVERTER
| MFG.# | DESCRIPTION |
| CSW412 | CSW Series 400W Inverter, 12VDC Input |
| CSW1012 | CSW Series 1000W Inverter, 12VDC Input |
| CSW2012 | CSW Series 2000W Inverter, 12VDC Input |
| CSW2012-X | CSW Series 2000W Inverter, 12VDC Input, Automatic Transfer Switch |
| CSW-RS | Optional Remote Switch for CSW Series |
| CSW-TS15 | Optional 15A Transfer Switch for the CSW1012 |
ME-RC Remote
AGS Network
Smart Battery Combiner
Fuse Block (300/400A)

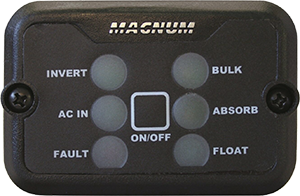

MM-RC Remote
AGS Stand-alone
Battery Monitor Kit
Fuse Block (125/200A)
| MFG.# | DESCRIPTION |
| REMOTES | |
| ME-RC50 | Remote with LCD Display and 50' Cable |
| MM-RC25 | MM & MMS Series Remote |
| ME-RC-BZ | Mounting Bezel for ME-RC50 Remote |
| AUTOMATIC GENERATOR START | |
| ME-AGS-N | Automatic Generator Start with Voltage & Temperature Sensor |
| ME-AGS-S | Stand-alone Automatic Generator Start with Voltage & Temperature Sensor |
| BATTERY MONITORING | |
| ME-SBC | Smart Battery Combiner |
| ME-BMK | Battery Monitor Kit |
| ME-BTS-15 | 15' Battery Temperature Sensor |
| FUSE BLOCKS | |
| ME-125F | 125A ANL Fuse Block Assembly |
| ME-200F | 200A ANL Fuse Block Assembly |
| ME-300F | 300A T Fuse Block Assembly |
| ME-400F | 400A T Fuse Block Assembly |
| T300 | 300A Class T Fuse - Replacement Fuse |
| T400 | 400A Class T Fuse - Replacement Fuse |
