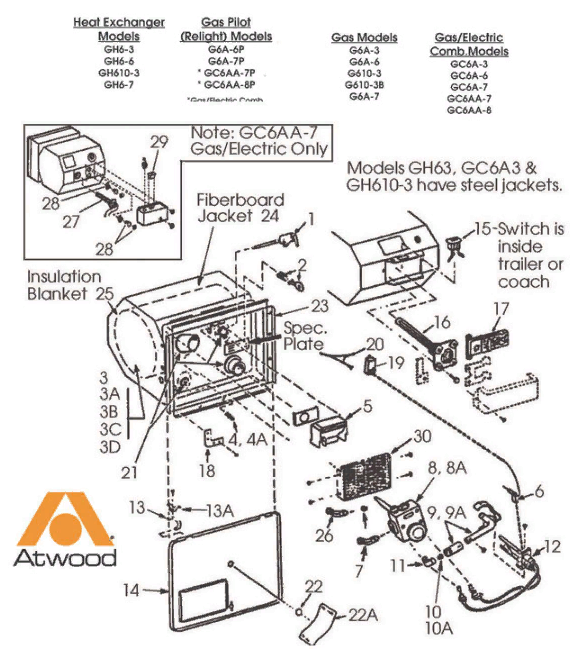

Please find the Part you need on the diagram above and click on the P/N number below in the table. Parts which are not listed below are Discontinued.
| Ref # | P/N | MPN | Part Name | Part Note |
| 1 | 91604 | Valve, Relief, 1/2" Fitting | ||
| 3 |
| 91412 | Tank, Inner | |
| 4A | 91857 | Drain Plugs, 1/2", Plastic, 2/pk | ||
| 5 | 90960 | Flue Box Assy w/o Grille | Incl: Gasket | |
| 8A | 91602 | Thermostat, Robertshaw, 3/8" NPT Inlet/Outlet | ||
| 9 | 92615 | Burner, Main | ||
| 12 | 91603 | Pilot Assy | Incl: Thermocouple & Tubing | |
| 21 | 96010 | Ring & Gasket Kit | ||
| 24 | 92220 / 92221 | Insulation Blanket, 6 Gallon | Use 42-0123 | |
| 25 | 92220 / 92221 | Insulation Blanket, 6 gal | Use 42-0123 | |
| 30 | 92640 | Grille, Flue | Mounts to the Door | |
