Draw-Tite Hitch Receiver Class III for Chevy/ GMC/ Pontiac/ Saturn 76028
Class
III
Color/ Finish
Black Powder Coated
Construction
Round Tube Welded
Cutting Required
No
Drilling Required
No
For Use With Roll Pan
No
Includes Ball Mount
No
Material
Steel
Receiver Size (IN)
2 Inch
Weight Carrying Capacity (LB)
4500 Pound
Weight Carrying Tongue Weight (LB)
675 Pound
Share this page

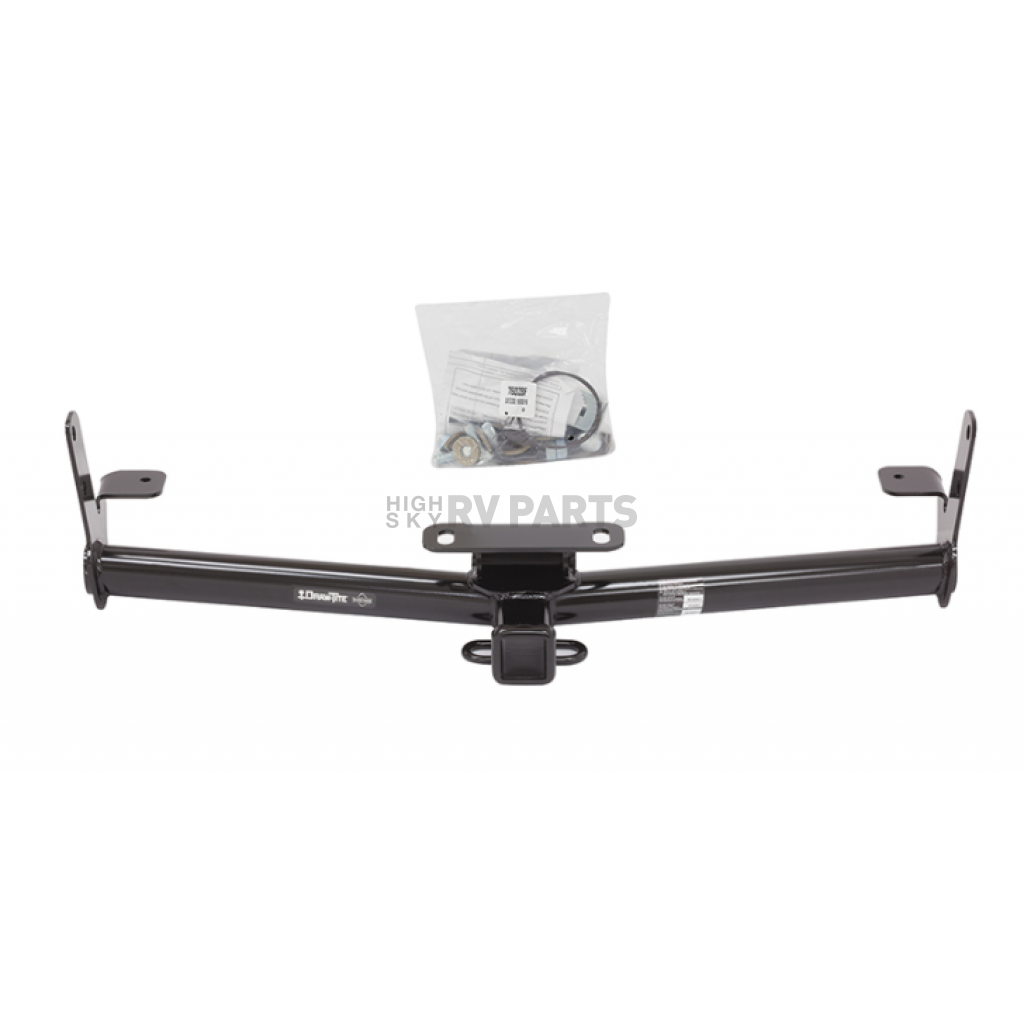

Draw-Tite Max-Frame 675 Lb Round Tube 2" Receiver Hitch
MPN: 76028
Draw-Tite offers the Max-Frame Class III/IV line of Round Tube Receivers, designed to complement today's trucks, vans and sport utility vehicles. These stylish trailer hitches complement your vehicle’s rugged good looks and blend elegantly into its overall appearance. Their all-frame attachment and A-Coat base/black powder coat finish ensure that they will retain their attractive appearance for years to come. The Draw-Tite Max-Frame Class III/IV receiver boasts solid welded construction for maximum strength and durability. Computer Aided Design (CAD) ensures a perfect fit for your vehicle.
Class: III
Receiver Size (IN): 2 Inch
Construction: Round Tube Welded
Weight Carrying Capacity (LB): 4500 Pound
Weight Carrying Tongue Weight (LB): 675 Pound
Weight Distributing Capacity (LB): 4500 Pound
Weight Distributing Tongue Weight (LB): 675 Pound
Color/ Finish: Black Powder Coated
Material: Steel
Includes Ball Mount: No
For Use With Roll Pan: No
Drilling Required: No
Cutting Required: No
Features
- 2 Inch Square Receiver Tube Opening
- Designed For Trucks, Vans And Sport Utility Vehicles
- Neat Appearance, All Frame Attachments
- A-Coat Base With Black Powder Coat Finish
- Solid All-Welded Construction For Maximum Strength And Safety
- Ensures Perfect Fit And Top Towing Performance
- Computer-Aided Design And Fatigue Stress Testing
- Designed To Withstand Road Abuse Within Specified Capacities
- Limited Lifetime Warranty
Specifications of Draw-Tite Hitch Receiver Class III for Chevy/ GMC/ Pontiac/ Saturn 76028 | |
Class | III |
Color/ Finish | Black Powder Coated |
Construction | Round Tube Welded |
Cutting Required | No |
Drilling Required | No |
For Use With Roll Pan | No |
Includes Ball Mount | No |
Material | Steel |
Receiver Size (IN) | 2 Inch |
Weight Carrying Capacity (LB) | 4500 Pound |
Weight Carrying Tongue Weight (LB) | 675 Pound |
Weight Distributing Capacity (LB) | 4500 Pound |
Weight Distributing Tongue Weight (LB) | 675 Pound |
Download Warranty for Draw-Tite Hitch Receiver Class III for Chevy/ GMC/ Pontiac/ Saturn 76028
Download Operating Manual for Draw-Tite Hitch Receiver Class III for Chevy/ GMC/ Pontiac/ Saturn 76028
Download Service Manual for Draw-Tite Hitch Receiver Class III for Chevy/ GMC/ Pontiac/ Saturn 76028
2005 Chevrolet Equinox
2006 Chevrolet Equinox
2007 Chevrolet Equinox
2008 Chevrolet Equinox
2009 Chevrolet Equinox
2010 Chevrolet Equinox
2011 Chevrolet Equinox
2012 Chevrolet Equinox
2013 Chevrolet Equinox
2014 Chevrolet Equinox
2015 Chevrolet Equinox
2016 Chevrolet Equinox
2017 Chevrolet Equinox
2006 Chevrolet Equinox
2007 Chevrolet Equinox
2008 Chevrolet Equinox
2009 Chevrolet Equinox
2010 Chevrolet Equinox
2011 Chevrolet Equinox
2012 Chevrolet Equinox
2013 Chevrolet Equinox
2014 Chevrolet Equinox
2015 Chevrolet Equinox
2016 Chevrolet Equinox
2017 Chevrolet Equinox
2010 GMC Terrain
2011 GMC Terrain
2012 GMC Terrain
2013 GMC Terrain
2014 GMC Terrain
2015 GMC Terrain
2016 GMC Terrain
2017 GMC Terrain
2011 GMC Terrain
2012 GMC Terrain
2013 GMC Terrain
2014 GMC Terrain
2015 GMC Terrain
2016 GMC Terrain
2017 GMC Terrain
2006 Pontiac Torrent
2007 Pontiac Torrent
2008 Pontiac Torrent
2009 Pontiac Torrent
2007 Pontiac Torrent
2008 Pontiac Torrent
2009 Pontiac Torrent
2002 Saturn Vue
2003 Saturn Vue
2004 Saturn Vue
2005 Saturn Vue
2006 Saturn Vue
2007 Saturn Vue
2007 Saturn Vue
2003 Saturn Vue
2004 Saturn Vue
2005 Saturn Vue
2006 Saturn Vue
2007 Saturn Vue
2007 Saturn Vue
