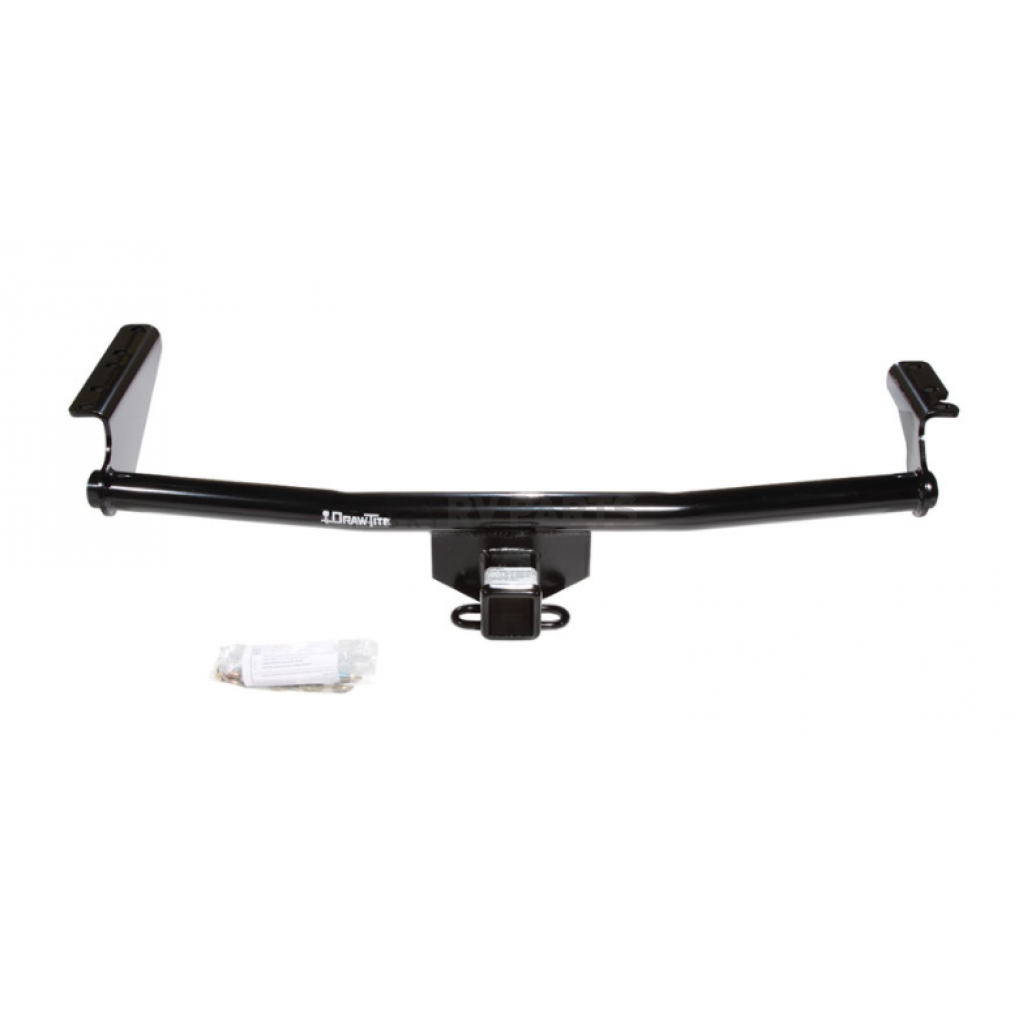

Draw-Tite Hitch Receiver Class III for Hyundai Santa Fe 41543
Class
III
Color/ Finish
Black Powder Coated
Construction
Round Tube Welded With Long Side Bracket
Cutting Required
No
Drilling Required
No
For Use With Roll Pan
No
Includes Ball Mount
No
Material
Steel
Receiver Size (IN)
2 Inch
Weight Carrying Capacity (LB)
3500 Pound
Weight Carrying Tongue Weight (LB)
315 Pound
Share this page
Draw-Tite Max-E-Loader 315 Lb Round 2" Receiver Hitch
MPN: 41543
Class III Hitches are Weight Carrying(WC) and also are Weight Distributing(WD) Hitches depending on the vehicle and Hitch specifications. Not all Class III Hitches are rated to be both. The Hitch specifications will alert you to a Hitch that is not weight distributing. Class III Hitches used as weight carrying is rated up to 5000 Pounds Gross Trailer Weight(GTW) with a maximum trailer Tongue Weight(TW) of 500 Pounds. Hitches that are used for weight distributing are rated up to 10000 Pounds Gross Trailer Weight(GTW) with a maximum trailer Tongue Weight(TW) of 1000 Pounds. This style of Hitch typically uses a 2 Inch square receiver opening. The use of a ball mount and Hitch ball of the same rating or higher is required. To use the weight distribution side of the Hitch a weight distribution system is required.
Class: III
Receiver Size (IN): 2 Inch
Construction: Round Tube Welded With Long Side Bracket
Weight Carrying Capacity (LB): 3500 Pound
Weight Carrying Tongue Weight (LB): 315 Pound
Weight Distributing Capacity (LB): 0 Pound
Weight Distributing Tongue Weight (LB): 0 Pound
Color/ Finish: Black Powder Coated
Material: Steel
Includes Ball Mount: No
For Use With Roll Pan: No
Drilling Required: No
Cutting Required: No
Features
- Long Side Bracket Design Distributes The Towing Load Over A Greater Portion Of The Tow Vehicle Frame
- All Frame Attachment; Ensures Perfect Fit And Top Towing Performance; Making It The Ideal Receiver For Maximum Duty 12000 Pounds Gross Trailer Weight Applications
- 2 Inch Square Receiver Tube Opening; Computer Aided Design And Fatigue Stress Testing
- J-Pin® Ready; Designed To Withstand Road Abuse Within Specified Capacities
- Weight Carrying Capacity: Rated Up To 6000 Pounds Gross Trailer Weight, Weight Distributing Capacity: Rated Up To 12000 Pounds Gross Trailer Weight
- Solid All Welded Construction For Maximum Strength And Safety
- Custom Built According To Manufacturer And Model Year
- Limited Lifetime Warranty
Specifications of Draw-Tite Hitch Receiver Class III for Hyundai Santa Fe 41543 | |
Class | III |
Color/ Finish | Black Powder Coated |
Construction | Round Tube Welded With Long Side Bracket |
Cutting Required | No |
Drilling Required | No |
For Use With Roll Pan | No |
Includes Ball Mount | No |
Material | Steel |
Receiver Size (IN) | 2 Inch |
Weight Carrying Capacity (LB) | 3500 Pound |
Weight Carrying Tongue Weight (LB) | 315 Pound |
Weight Distributing Capacity (LB) | 0 Pound |
Weight Distributing Tongue Weight (LB) | 0 Pound |
Download Warranty for Draw-Tite Hitch Receiver Class III for Hyundai Santa Fe 41543
Download Operating Manual for Draw-Tite Hitch Receiver Class III for Hyundai Santa Fe 41543
Download Service Manual for Draw-Tite Hitch Receiver Class III for Hyundai Santa Fe 41543
2001 Hyundai Santa Fe
2002 Hyundai Santa Fe
2003 Hyundai Santa Fe
2004 Hyundai Santa Fe
2005 Hyundai Santa Fe
2006 Hyundai Santa Fe
2002 Hyundai Santa Fe
2003 Hyundai Santa Fe
2004 Hyundai Santa Fe
2005 Hyundai Santa Fe
2006 Hyundai Santa Fe
