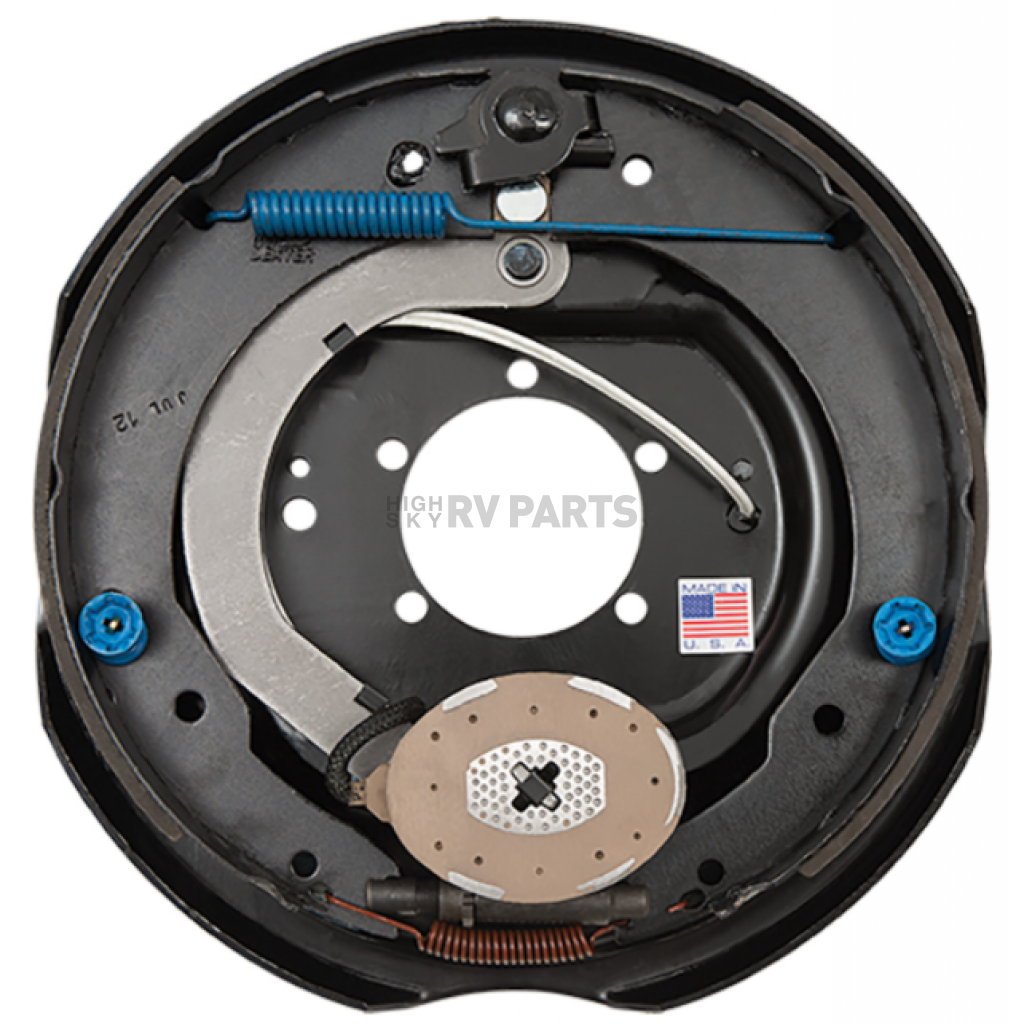

Dexter Electric Brake Assembly for 5200 Lbs Axle - 12 Inch - K23-112-00
Dexter Axle Trailer Brake Assembly
Trailer Brake Assembly; Dexter 12 Inch Diameter x 2 Inch Width; CSA With Park Brake Assembly; Electric Brake System; Drum Brake Type; 5200 Pound Axle; Left Side; With Brake 023-112-00/ Instruction Sheet 059-726-00; Boxed
MPN: K23-112-00
Dexter electric brakes with parking brake option are mechanically operated by a cable. Cable force applied to the parking lever creates a torque through the pivot pin And cam assembly. Torque transferred to the parking cam results in a spreading force between the primary And secondary shoes. The shoes, in turn, move towards the drum until contact is made. Friction generated between the drum And lining contact surface keeps the drum from rotating under normal loading conditions.Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Parking Brake Option Are Mechanically Operated By A Cable
- Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
- In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle
- Limited 90 Day Warranty
Specifications of Dexter Electric Brake Assembly for 5200 Lbs Axle - 12 Inch - K23-112-00 | |
Brake System | Electric |
Axle Weight Capacity | 5200 Lbs |
Position | Left |
Diameter | 12 Inch |
Actuation Type | Manual Adjusting |
Brake Type | Drum |
