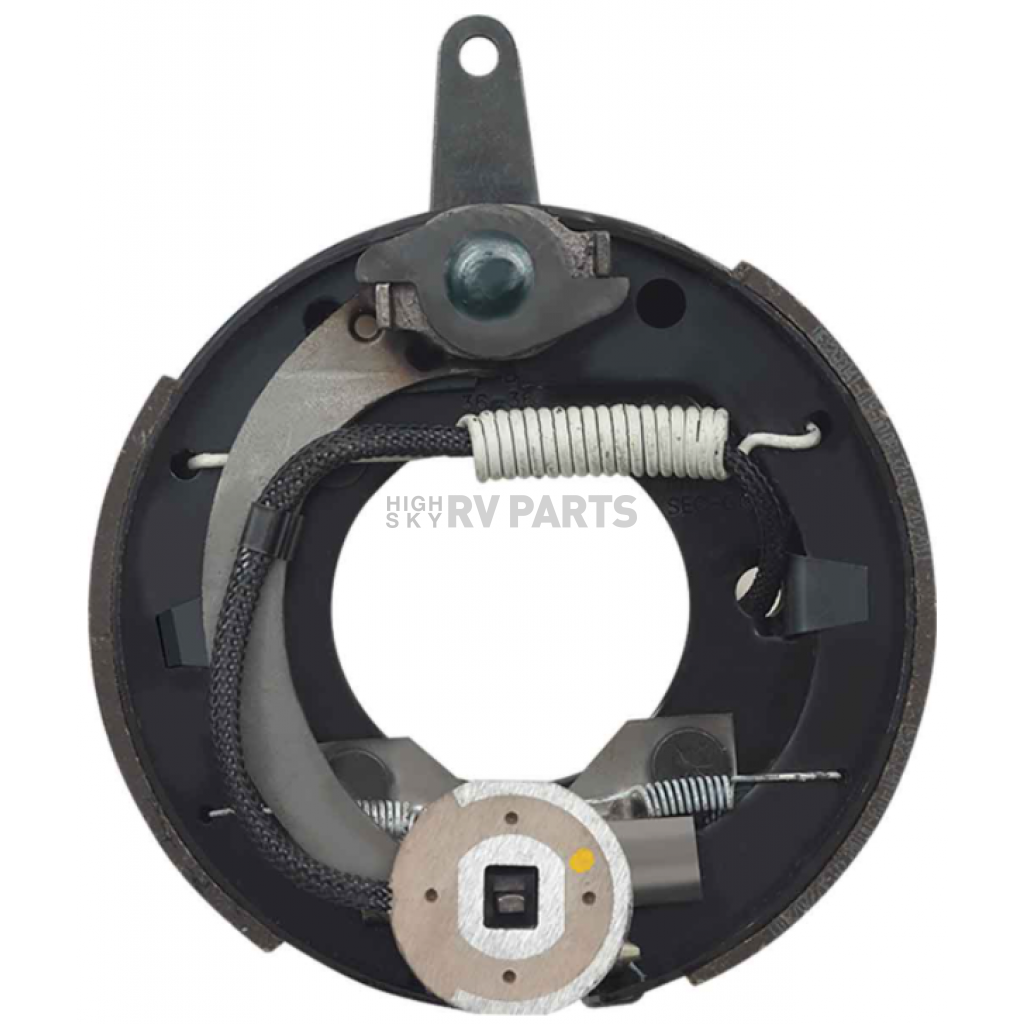

Dexter Electric Brake Assembly for 2200 Lbs Axle - 7 Inch - K23-103-00

Authorized Dealer
Brand: Dexter Axle Dexter Axle
0 reviews
  • Have a product question? Ask us
  • Part Number: K23-103-00
  • Part Location: U.S.
  • Availability: 100 In Stock
  • Delivery: 2 - 3 Weeks
Retail: $197.39
Price: $187.99
You Save: $9.40
Brake System
Electric
Axle Weight Capacity
2200 Lbs
Position
Left
Diameter
7 Inch
Actuation Type
Manual Adjusting
Brake Type
Drum
Share this page

Dexter Axle Trailer Brake Assembly

Trailer Brake Assembly; Dexter 7 Inch Diameter x 1-1/4 Inch Width; With Park Brake Assembly; Electric Brake System; Drum Brake Type; 2200 Pound Axle; Left Side; With Brake 023-103-00/ Instruction Sheet 059-726-00; Boxed

MPN: K23-103-00

Dexter electric brakes with parking brake option are mechanically operated by a cable. Cable force applied to the parking lever creates a torque through the pivot pin And cam assembly. Torque transferred to the parking cam results in a spreading force between the primary And secondary shoes. The shoes, in turn, move towards the drum until contact is made. Friction generated between the drum And lining contact surface keeps the drum from rotating under normal loading conditions.
Diameter: 7 Inch
Width: 1-1/4 Inch
Brake System: Electric
Brake Type: Drum
Axle Weight Capacity: 2200 Pound
Position: Left
Includes Backing Plate: Yes
Includes Brake Shoes: Yes
Includes Magnets: Yes
Includes Actuating Lever: Yes
Includes Adjusting Screw: Yes
Includes Spring Hardware: Yes
Estimated Install Time (Hours): 0.5

Features

  • Manually Adjusted At The Controller To Provide The Correct Braking Capability For Varying Road And Load Conditions
  • Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
  • They Have Very Little Lag Time From The Moment The Tow Vehicle's Brakes Are Actuated Until The Trailer Brakes Are Actuated
  • In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle
  • Limited 90 Day Warranty
Specifications of Dexter Electric Brake Assembly for 2200 Lbs Axle - 7 Inch - K23-103-00
Brake System Electric
Axle Weight Capacity 2200 Lbs
Position Left
Diameter 7 Inch
Actuation Type Manual Adjusting
Brake Type Drum
