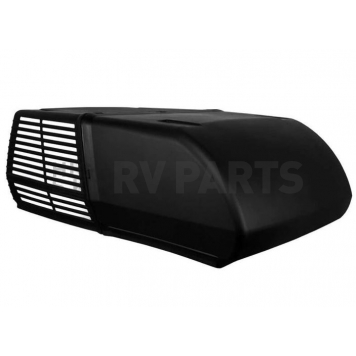

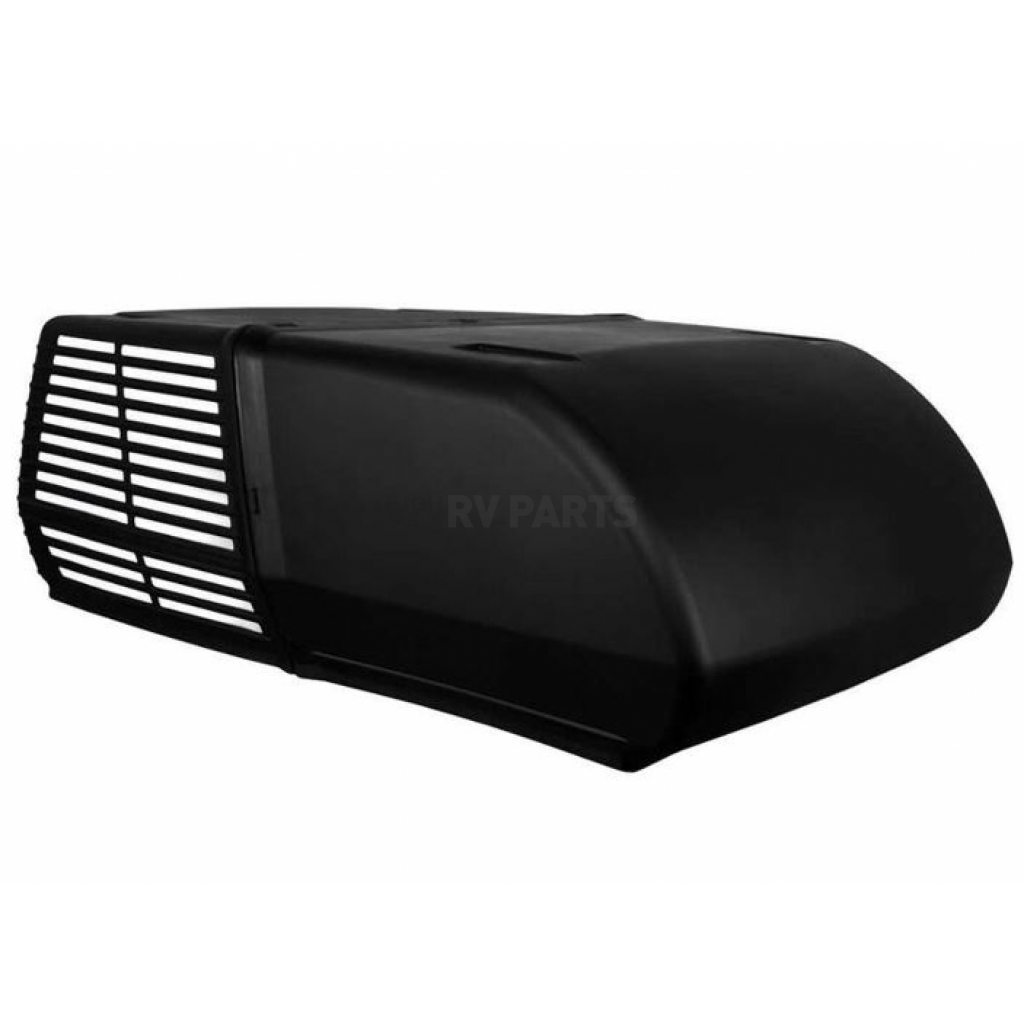

Coleman Mach 3 Plus Air Conditioner - 13500 BTU Black - 38203-0690

Name: Coleman Mach 3 Plus Air Conditioner - 13500 BTU Black - 38203-0690
Brand: Coleman Mach
SKU: 38203-0690
Price: 1013.88 USD
Availability: InStock

Authorized Dealer

Brand:

Coleman Mach

0 reviews

Have a product question? Ask us
Part Number: 38203-0690
Part Location: U.S.
Availability: 196 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by February 09

Retail: $1,064.57

Price: $1,013.88

You Save: $50.69

AC System

Ducted System Or Non Ducted System

Additional Info 1

Ceiling Assembly And Thermostat Must Be Ordered Separately

Ampere Rating

13 Amp

BTU Level

13500 BTU

Color

Black

Cooling Type

Evaporative Cooling

Estimated Install Time (Hours)

1.5

Evaporator Flow Rate

320 CFM (Cubic Feet Per Minute)

Function

AC Only

Height

Medium Profile - 13.8 Inch

Marine

Share this page

Air Conditioner; Mach 3 Plus; Fits 14 Inch x 14 Inch Vent Openings; 13500 BTU; Ducted Or Non Ducted; Textured Black; 120 Volt; 12.8 Amp Compressor Draw; Without Heat Pump; Without Condensate Pump; 13.8 Inch Height x 26.1 Inch Width x 38 Inch Length; 79.5 Pounds; Ceiling Assembly And Thermostat Must Be Ordered Separately

MPN: 38203-0690

The Coleman(R)-Mach(R) 3 PLUS™ is one of the best RV air conditioning values available. It features a large evaporator and condenser coils with raised lance fins to help dissipate heat, has a solid 13,500 nominal BTU cooling capacity, and delivers 320 Cubic Feet Per Minute airflow. You can count on the Mach 3 PLUS™ for reliability. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner. Add the optional Heater Assembly, and you'll have 5,600 BTUs of heat for cool-weather outings.

Mount: 14 Inch x 14 Inch Vent Openings

BTU Level: 13500 BTU

AC System: Ducted System Or Non Ducted System

Zone Control: Without Built-In Zone Control Electronic Board

Color: Black

Cooling Type: Evaporative Cooling

Function: AC Only

Height: Medium Profile - 13.8 Inch

Voltage Rating: 120 Volt

Ampere Rating: 13 Amp

Evaporator Flow Rate: 320 CFM (Cubic Feet Per Minute)

With Condensate Pump: Without Condensate Pump

With Remote Control: Without Remote Control

Weight: 79.5 Pound

Additional Info 1: Ceiling Assembly And Thermostat Must Be Ordered Separately

Estimated Install Time (Hours): 1.5

Marine: No

Features

Features A Large Evaporator And Condenser Coils With Raised Lance Fins To Help Dissipate Heat
All-Copper Tubing And Gas-Flux Brazed Joints Ensure Durability And Long Life
Has A Solid 13,500 Nominal BTU Cooling Capacity
Electric Heat Element Capacity: 5,600
Limited 2 Year Warranty

Specifications of Coleman Mach 3 Plus Air Conditioner - 13500 BTU Black - 38203-0690
AC System	Ducted System Or Non Ducted System
Additional Info 1	Ceiling Assembly And Thermostat Must Be Ordered Separately
Ampere Rating	13 Amp
BTU Level	13500 BTU
Color	Black
Cooling Type	Evaporative Cooling
Estimated Install Time (Hours)	1.5
Evaporator Flow Rate	320 CFM (Cubic Feet Per Minute)
Function	AC Only
Height	Medium Profile - 13.8 Inch
Marine	No
Mount	14 Inch x 14 Inch Vent Openings
Voltage Rating	120 Volt
Weight	79.5 Pound
With Condensate Pump	Without Condensate Pump
With Remote Control	Without Remote Control
Zone Control	Without Built-In Zone Control Electronic Board
