Blue Sea Power Distribution Box 8562-BSS
Color
Black
GFCI/ Overload Protection
No
Height (IN)
7-1/2 Inch
Length (IN)
3 Inch
Material
Aluminum
Number Of Connections
11
Power Rating
16 Amp
Receptacle Type
No Receptacle
Recommended Use
AC Source Selection Circuit Breaker Panel
UL Listed
No
Voltage Rating
230 Volt
Share this page

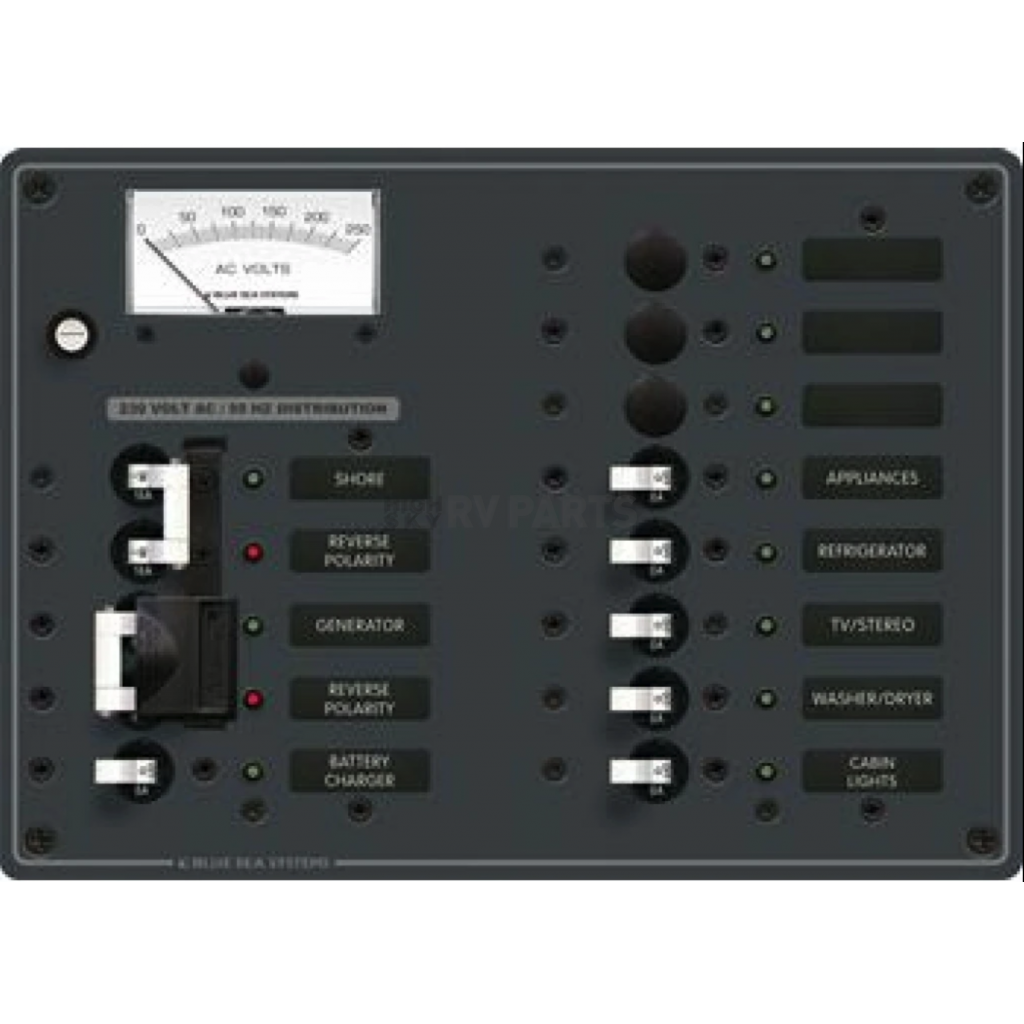

Blue Sea Power Distribution Box
Power Distribution Box; AC Source Selection Circuit Breaker Panel; 230 Volts AC; 16 Amps; Traditional Metal; 2 Sources And 9 Positions; Black; 10-1/2 Inch Width x 7-1/2 Inch Height x 3 Inch Depth; With Basic AC Panel Label Set - 30 Labels/ 2 LED - 230 Volts AC Red/ 11 LED - 230 Volts AC Green/ 6 A-Series White Toggle Circuit Breaker - Single Pole 8 Amps (Branch)/ 2 A-Series White Toggle Circuit Breaker - Double Pole 16 Amps (Main)/ AC Voltmeter - 0 To 250 Volts AC
MPN: 8562-BSS
Recommended Use: AC Source Selection Circuit Breaker Panel
Voltage Rating: 230 Volt
Power Rating: 16 Amp
Receptacle Type: No Receptacle
Number Of Connections: 11
GFCI/ Overload Protection: No
Length (IN): 3 Inch
Width (IN): 10-1/2 Inch
Color: Black
Height (IN): 7-1/2 Inch
Material: Aluminum
UL Listed: No
With Flip Cover: No
Features
- Double Pole AC Main Circuit Breakers With Installed Lockout Slide
- Prevents Connecting Both AC Sources Simultaneously
- Maximum Panel Amperage 50 Amperes
- Red Reverse Polarity Indicating LED
- All Hot, Neutral And Safety Ground Buses Installed, Fully Pre-Wired
- ON Indicating LEDs Installed In All Circuit Positions
- No Supplier Warranty
Specifications of Blue Sea Power Distribution Box 8562-BSS | |
Color | Black |
GFCI/ Overload Protection | No |
Height (IN) | 7-1/2 Inch |
Length (IN) | 3 Inch |
Material | Aluminum |
Number Of Connections | 11 |
Power Rating | 16 Amp |
Receptacle Type | No Receptacle |
Recommended Use | AC Source Selection Circuit Breaker Panel |
UL Listed | No |
Voltage Rating | 230 Volt |
Width (IN) | 10-1/2 Inch |
With Flip Cover | No |
