Blue Sea Power Distribution Box 8467-BSS
Color
Black
GFCI/ Overload Protection
No
Height (IN)
7-1/2 Inch
Length (IN)
3 Inch
Material
Aluminum
Number Of Connections
6
Power Rating
30 Amp
Receptacle Type
No Receptacle
Recommended Use
AC Source Selection Circuit Breaker Panel
UL Listed
No
Voltage Rating
120 Volt
Share this page

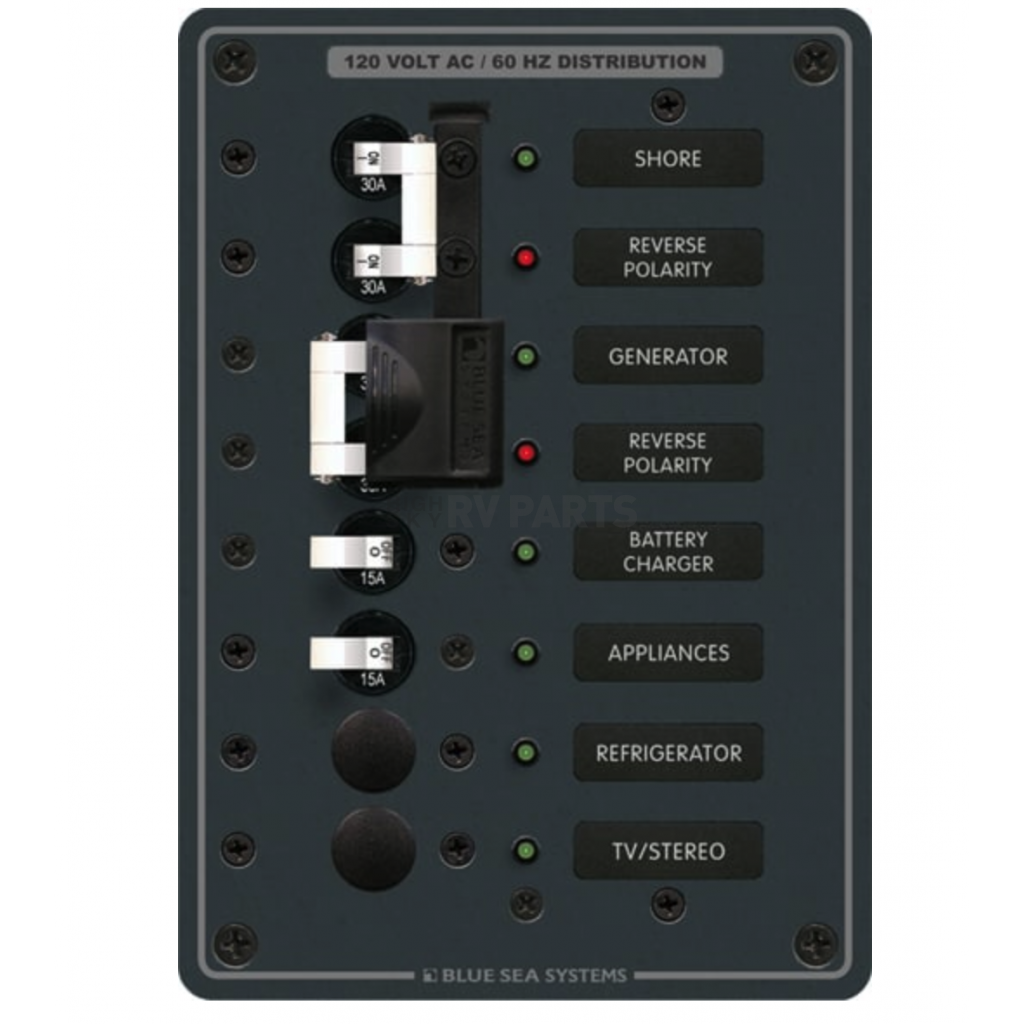

Blue Sea Power Distribution Box
Power Distribution Box; AC Source Selection Circuit Breaker Panel; 120 Volts AC; 30 Amps; Traditional Metal; 2 Sources And 4 Positions; Black; 5-1/4 Inch Width x 7-1/2 Inch Height x 3 Inch Depth; With Basic AC Panel Label Set - 30 Labels/ 6 LED - 120 Volts AC Green/ 2 LED - 120 Volts AC Red/ 2 A-Series White Toggle Circuit Breaker - Single Pole 15 Amps (Branch)/ 2 A-Series White Toggle Circuit Breaker - Double Pole 30 Amps (Main)
MPN: 8467-BSS
Recommended Use: AC Source Selection Circuit Breaker Panel
Voltage Rating: 120 Volt
Power Rating: 30 Amp
Receptacle Type: No Receptacle
Number Of Connections: 6
GFCI/ Overload Protection: No
Length (IN): 3 Inch
Width (IN): 5-1/4 Inch
Color: Black
Height (IN): 7-1/2 Inch
Material: Aluminum
UL Listed: No
With Flip Cover: No
Features
- Double Pole AC Main Circuit Breakers With Installed Lockout Slide
- Prevents Connecting Both AC Sources Simultaneously
- Red Reverse Polarity Indicating LED
- All Hot, Neutral And Safety Ground Buses Installed, Fully Pre-Wired
- ON Indicating LEDs Installed In All Circuit Positions
- No Supplier Warranty
Specifications of Blue Sea Power Distribution Box 8467-BSS | |
Color | Black |
GFCI/ Overload Protection | No |
Height (IN) | 7-1/2 Inch |
Length (IN) | 3 Inch |
Material | Aluminum |
Number Of Connections | 6 |
Power Rating | 30 Amp |
Receptacle Type | No Receptacle |
Recommended Use | AC Source Selection Circuit Breaker Panel |
UL Listed | No |
Voltage Rating | 120 Volt |
Width (IN) | 5-1/4 Inch |
With Flip Cover | No |
