Blue Sea Power Distribution Box 8101
Color
Black
GFCI/ Overload Protection
Yes
Height (IN)
7-1/2 Inch
Length (IN)
5-1/4 Inch
Material
Aluminum
Number Of Connections
5
Power Rating
30 Amp
Receptacle Type
No Receptacle
UL Listed
No
Voltage Rating
120 Volt AC
Width (IN)
3-1/2 Inch
Share this page

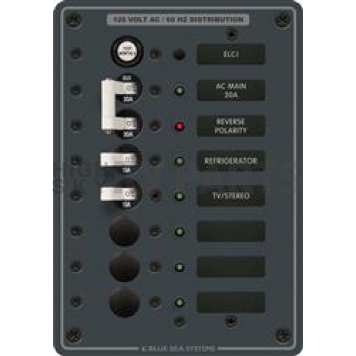

Blue Sea Power Distribution Box
Power Distribution Box; AC Residual Current Circuit Breaker Panel; 120 Volts AC; 30 Amps; Traditional Metal; ELCI Main; Double Pole And 5 Positions; Black; 5-1/4 Inch Width x 7-1/2 Inch Height x 3-1/2 Inch Depth; With 2 A-Series White Toggle Circuit Breaker - Single Pole 15 Amps/ 6 LED - 120 Volts AC Green/ LED - 120 Volts AC Red/ A-Series ELCI Main Circuit Breaker - Double Pole 120 Volts AC 30 Amps
MPN: 8101
At the heart of a boat's electrical system is the power distribution panel. Blue Sea Systems manufactures panels for small runabouts to large offshore cruising yachts, with four panel styles. AC Residual Current Circuit Breaker Panels reduces the risk of fire and shock hazards caused by defects in boat appliances and circuit wiring. The Traditional Metal Panels are suited for use as extension to existing panels or as full replacements.
Voltage Rating: 120 Volt AC
Power Rating: 30 Amp
Receptacle Type: No Receptacle
Number Of Connections: 5
GFCI/ Overload Protection: Yes
Length (IN): 5-1/4 Inch
Width (IN): 3-1/2 Inch
Color: Black
Height (IN): 7-1/2 Inch
Material: Aluminum
UL Listed: No
With Flip Cover: No
Features
- ELCI Provides Overcurrent And Leakage Protection
- All Circuit Label Positions Are Backlit. "ON" Indicating LEDs
- Red Reverse Polarity Indicating LED
- Limited 90 Day Warranty
Specifications of Blue Sea Power Distribution Box 8101 | |
Color | Black |
GFCI/ Overload Protection | Yes |
Height (IN) | 7-1/2 Inch |
Length (IN) | 5-1/4 Inch |
Material | Aluminum |
Number Of Connections | 5 |
Power Rating | 30 Amp |
Receptacle Type | No Receptacle |
UL Listed | No |
Voltage Rating | 120 Volt AC |
Width (IN) | 3-1/2 Inch |
With Flip Cover | No |
