Blue Sea Power Distribution Box 8095

Brand: Blue Sea Blue Sea
0 reviews
  • Have a product question? Ask us
  • Part Number: 8095
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: 1 - 2 Months
Retail: $2,309.99
Price: $2,199.99
You Save: $110.00
Color
Black
GFCI/ Overload Protection
Yes
Height (IN)
11-1/2 Inch
Length (IN)
19-1/2 Inch
Material
Aluminum
Number Of Connections
8
Power Rating
15 Amp/ 30 Amp/ 100 Amp
Receptacle Type
No Receptacle
UL Listed
No
Voltage Rating
120 Volt AC/ 12 Volt DC
Width (IN)
3 Inch
Share this page

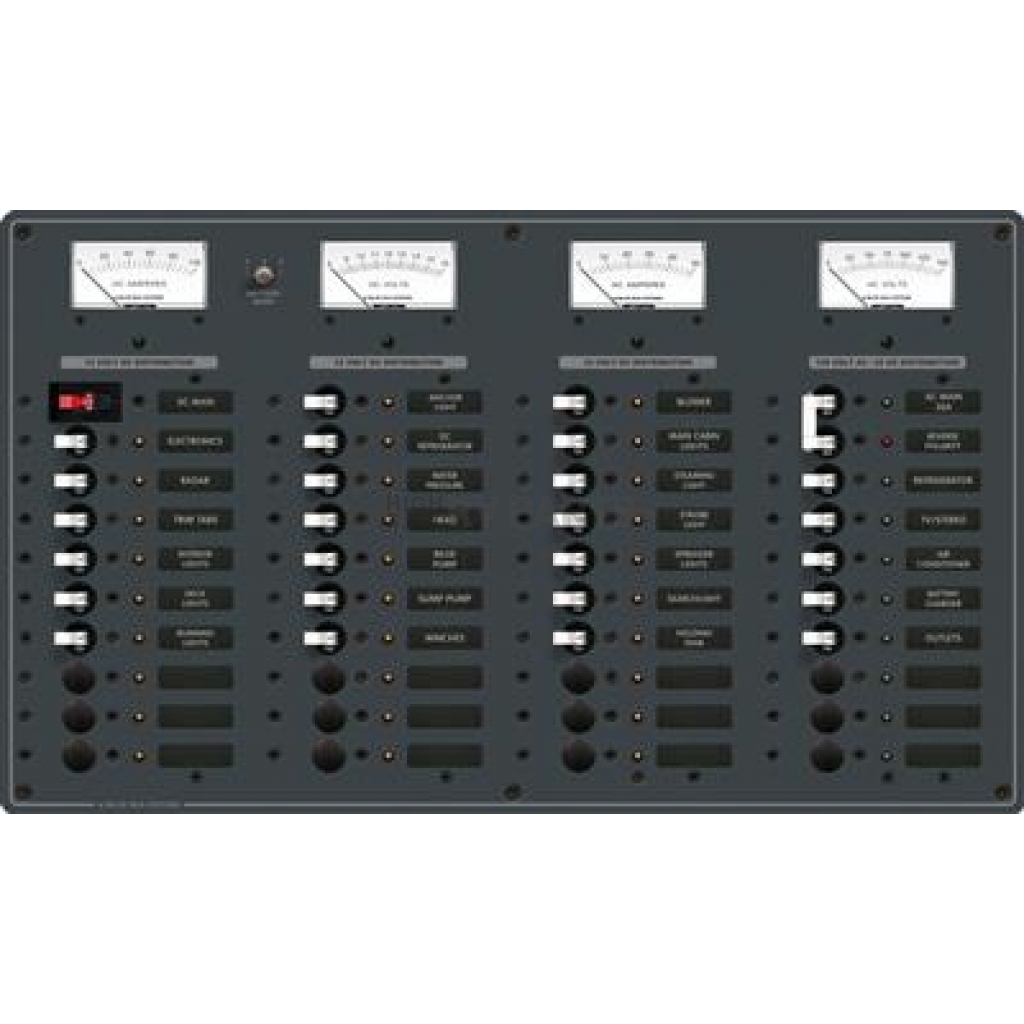

Blue Sea Power Distribution Box

Power Distribution Box; AC/DC Combination Circuit Breaker Panel; 120 Volts AC/ 12 Volts DC; Traditional Metal; 8 Positions AC And 29 Positions DC; Black; 19-1/2 Inch Width x 11-1/2 Inch Height x 3 Inch Depth; With 5 A-Series White Toggle Circuit Breaker - Single Pole 15 Amps (AC Branch)/ A-Series White Toggle Circuit Breaker - Double Pole 30 Amps (AC Main)/ AC Voltmeter - 0 To 150 Volts AC/ AC Ammeter - 0 To 50 Amps With Coil/ 20 A-Series White Toggle Circuit Breaker - Single Pole 15 Amps (DC Branch)/ C-Series White Toggle Circuit Breaker - Single Pole 100 Amps (DC Main)/ DC Analog Voltmeter - 8 To 16 Volts DC/ DC Analog Ammeter - 0 To 100 Amps With Shunt

MPN: 8095

At the heart of a boat's electrical system is the power distribution panel. Blue Sea Systems manufactures panels for small runabouts to large offshore cruising yachts, with four panel styles. AC/DC Combination Circuit Breaker Panels Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel. The Traditional Metal Panels are suited for use as extension to existing panels or as full replacements.
Voltage Rating: 120 Volt AC/ 12 Volt DC
Power Rating: 15 Amp/ 30 Amp/ 100 Amp
Receptacle Type: No Receptacle
Number Of Connections: 8
GFCI/ Overload Protection: Yes
Length (IN): 19-1/2 Inch
Width (IN): 3 Inch
Color: Black
Height (IN): 11-1/2 Inch
Material: Aluminum
UL Listed: No
With Flip Cover: No

Features

  • All AC And DC Buses Installed And Fully Pre-Wired
  • Label Backlighting Pre-Installed
  • ON - Indicating LEDs Installed In All Circuit Positions
  • Limited 90 Day Warranty
Specifications of Blue Sea Power Distribution Box 8095
Color Black
GFCI/ Overload Protection Yes
Height (IN) 11-1/2 Inch
Length (IN) 19-1/2 Inch
Material Aluminum
Number Of Connections 8
Power Rating 15 Amp/ 30 Amp/ 100 Amp
Receptacle Type No Receptacle
UL Listed No
Voltage Rating 120 Volt AC/ 12 Volt DC
Width (IN) 3 Inch
With Flip Cover No
